SKU: 990-11406
  • Motherboard: Mini-ITX, mATX, ATX
  • 6 drive bays: Int - 4 x 2.5", 2 x 3.5"
  • Front Panel I/O: 2 x USB 3.0, 2 x USB 2.0, Audio In & Out, ARGB Control Button
  • Fans Installed: 3 x 120mm ARGB Front , 1 x 120mm Rear
  • Max VGA Card Length: 410mm / Max CPU Cooler Height: 165mm
Our Price: Login to see price
Discontinued - Not orderable


Specifications

M/B Format
  • Mini-ITX
  • mATX
  • ATX
Int. Bay (s)
  • 4 x 2.5"
  • 2 x 3.5"
Cooling Fan (s)
Supports:
  • Front: 120mm x 3 / 140mm x 2
  • Top: 120mm x 2 / 140mm x 2
  • Rear: 120mm x 1
Power Supply
Max Length: 180mm (Not Included)
USB Port (s)
  • 2 x USB 3.0
  • 2 x USB 2.0
Audio Port
Audio In & Out
Expansion Slots
7
Dimensions
489 x 229 x 469mm
Additional information
  • Max VGA Card Length: 410mm
  • Max CPU Cooler Height: 165mm

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Cooler Master
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Cooler Master at (909) 673-9880
  • Technical Support: Cooler Master (909) 673-9880

Package Contents

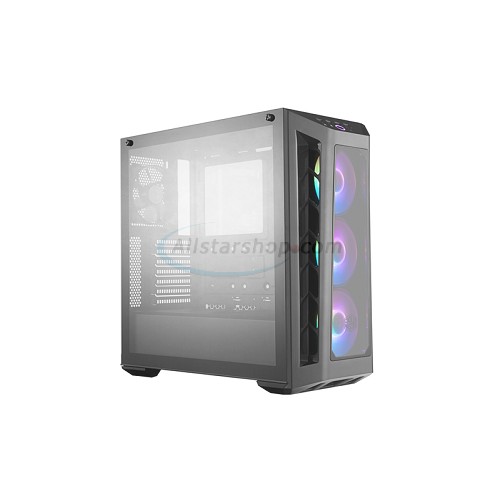

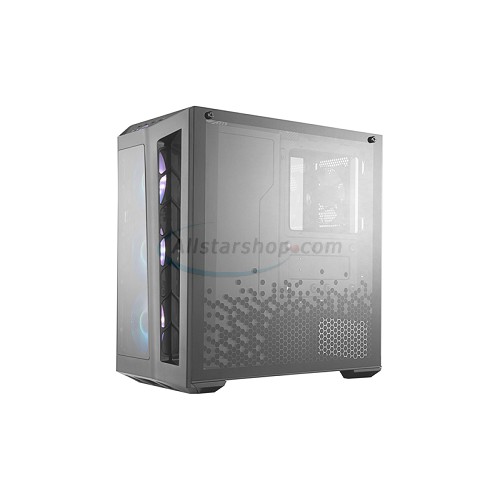

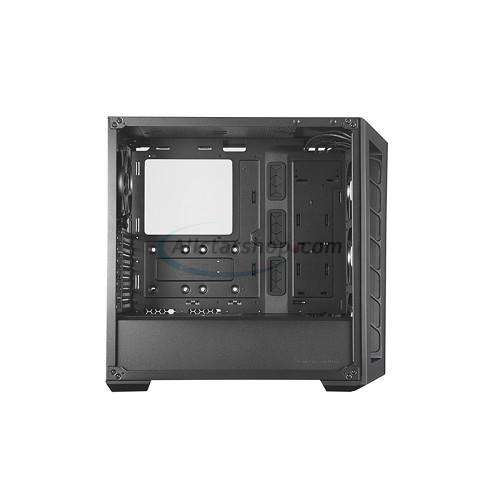

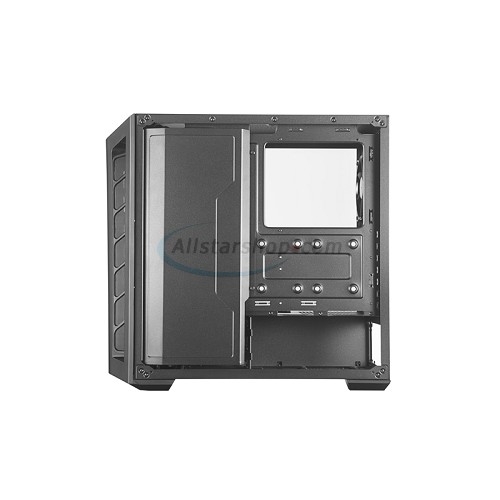

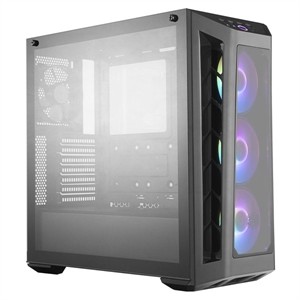

  • MasterBox MB530P Case
  • Mounting Hardware
