Asus Z97-DELUXE Z97 LGA1150 PCIe 3.0 ATX motherboard - (Discontinued)

Support: (812)282-2787

Asus Z97-DELUXE Z97 LGA1150 PCIe 3.0 ATX motherboard - (Discontinued)

SKU:

800-51169

Integrated Intel Graphics - miniDP / DP / HDMI / Thunderbolt
Max 32GB / 4 Dimm DDR3 1866/1600/1333
2 x SATAe, 6 x SATA 6Gb/s, 1 x M.2 / RAID 0, 1, 10, 5
Up to 4 x USB 3.0, 16 x USB 2.0
2 x PCIe 3.0 X16, 1 x PCIe X16(X4), 4 x PCIe X1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston 16GB KIT (2x8GB) DDR3-1600 CL11 240-pin DIMM

: WD Black 1TB 7200RPM 64MB Buffer SATA 6Gb/s 3.5" Hard Drive

: WD Black 2TB 7200RPM 64MB Buffer SATA 6Gb/s 3.5" Hard Drive

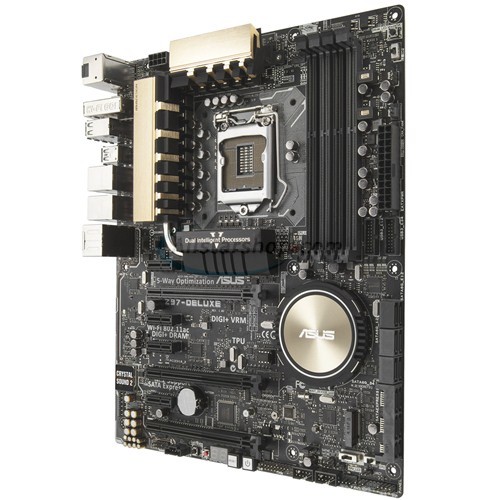

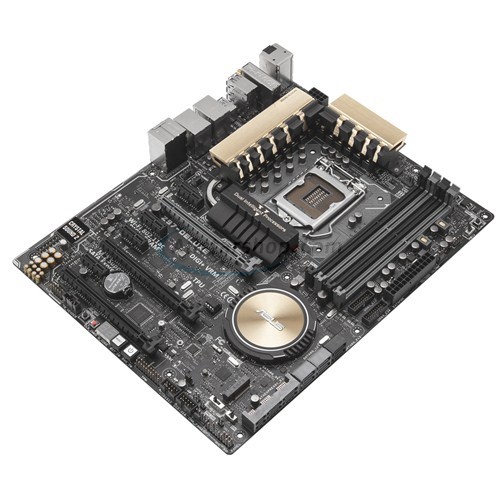

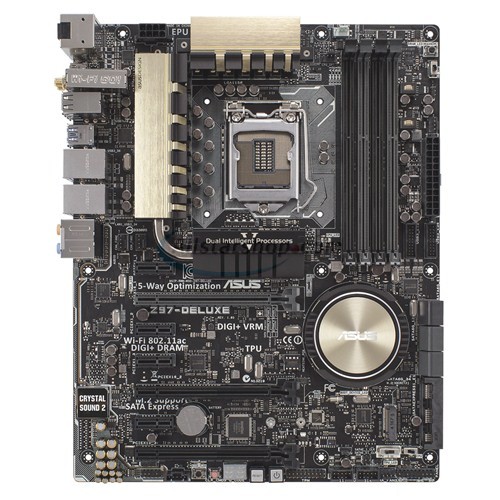

The Z97-DELUXE motherboard supports Intel 4th and 5th Generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance.

One-click total system optimization and fastest 802.11ac Wi-Fi connectivity!

5-Way Optimization by Dual Intelligent Processors 5 – One click, total system optimization!
M.2 & SATA Express - Speed up your system with lightning-fast 10Gb/s transfer speed
Crystal Sound 2 audio and dual Intel Gigabit Ethernet -- a game-winning combo!
ASUS HomeCloud with 802.11ac Wi-Fi - Access your PC remotely and stream multimedia content anywhere, anytime
Proven quality – 5X Protection. 1000+ compatible devices. 7000+ validation hours.

Description

5-Way Optimization by Dual Intelligent Processors 5 – One click, total system optimization!
M.2 & SATA Express - Speed up your system with lightning-fast 10Gb/s transfer speed
Crystal Sound 2 audio and dual Intel Gigabit Ethernet -- a game-winning combo!
ASUS HomeCloud with 802.11ac Wi-Fi - Access your PC remotely and stream multimedia content anywhere, anytime
Proven quality – 5X Protection. 1000+ compatible devices. 7000+ validation hours.

Specifications

CPU Support

Socket 1150 for 4th and 5th generation Intel Core processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z97 chipset

System Bios

AMI UEFI BIOS

Video card slot

PCIe 3.0 X16

Number of Memory Slots

Type of Memory Supported

240-pin DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory

Maximum RAM

32GB

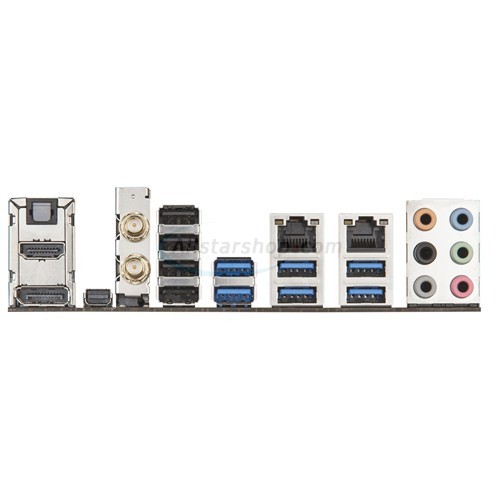

Back Panel I/O

6 x USB 3.0
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Mini DisplayPort
2 x RJ45 LAN ports

Number of PCI/PCI-Express Slots

2 x PCIe 3.0/2.0 x16 (1x16 or dual x8)
1 x PCIe 2.0 x16 (max. x4)
4 x PCIe 2.0 x1

On-Board EIDE/Floppy

Integrated SATA/SAS

4 x SATA 6Gb/s

2 x SATA 6Gb/s

# of SATA Express Ports

2 x SATA Express port

# of M.2 Ports

1 x M.2 Socket

Integrated SATA/SAS RAID

RAID 0, 1, 5 and 10

Integrated Audio

Realtek ALC1150 8-Channel High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics

Integrated LAN

Intel I218V Gigabit LAN
Intel I211-AT Gigabit LAN

USB

4 x USB 3.0 ports on Back Panel I/O
6 x USB 2.0 ports on Back Panel I/O
8 x USB 2.0 ports via headers

IEEE 1394

Serial/Parallel Ports

PS/2 Ports

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.

Package Contents

User's manual
ASUS Q-Shield
Asus Z97-DELUXE
6 x SATA 6Gb/s cables
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI bridge

Compatible Accessories

Memory

Kingston 16GB KIT (2x8GB) DDR3-1600 CL11 240-pin DIMM (Retail)

Designed and tested for Dual Channel Architecture
2 x 8GB modules
Based on sixteen 2Rx8 512Mx8 DRAM

Manufacturer: Kingston

Mfg P/N: KVR16N11K2/16

Availability: Temporarily out of stock

Hard Drives

WD Black 1TB 7200RPM 64MB Buffer SATA 6Gb/s 3.5" Hard Drive

Colossal cache
5-year warranty

Manufacturer: Western Digital

Mfg P/N: WD1003FZEX

Availability: Temporarily out of stock

WD Black 2TB 7200RPM 64MB Buffer SATA 6Gb/s 3.5" Hard Drive

Colossal cache
5-year warranty

Manufacturer: Western Digital

Mfg P/N: WD2003FZEX

Availability: Usually ships with 1-2 business days
