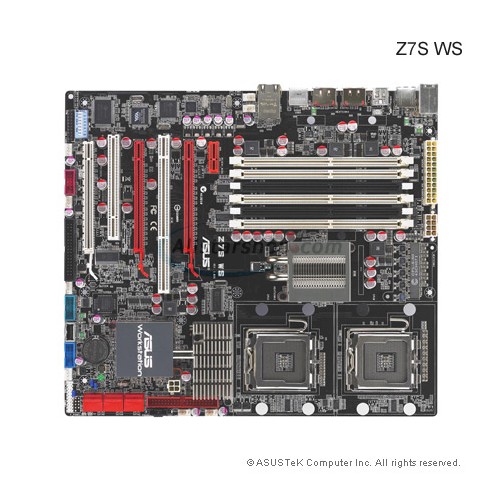

Asus Z7S WS i5400 XEON DDR2/SATA CEB Server Board - (Discontinued)

Support: (812)282-2787

Asus Z7S WS i5400 XEON DDR2/SATA CEB Server Board - (Discontinued)

SKU:

800-51137

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Asus Prime RTX 5070 TI 16GB GDDR7 OC PCIe 5.0 Video Card

: Gigabyte B850 AORUS ELITE WIFI7 AMD B850 AM5 ATX Motherboard

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 2TB

The Z7S WS is the ideal foundation for a powerful workstation. It delivers awesome power, dependable performance and unparallel I/O scalability for the most demanding tasks and future upgrades. The Z7S WS intelligently reduces operation noise and dissipates heat through advanced and environmentally friendly methods to accommodate user needs. Don´t change yourself for a computer. Instead, Let the Z7S WS improve the quality of your work and your life.

	LGA771 Intel Xeon Processor Ready The Asus Z7S WS supports Intel Quad-Core & Dual-Core Xeon processors in LGA771 package.
	Intel 5400 chipset The Intel 5400 is designed to support Dual PCI Express graphics, along with the maximum 8GB dual-channel DDR2 667/533 architecture, 1066/800 FSB (front-side-bus), and Multi-Core CPU. Easily build an workstation or create a multimedia environment with its exceptionally high bandwidth. Together with the Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 975X satisfies multi-task processing and data security.
	PCIe 2.0 Double Speed; Double Bandwidth & Triple Performance The Asus Z7S WS supports PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
	ATI CrossFire Technology ATI´s CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATI´s Catalyst™ Control Center to rule your CrossFire system.
	Heat Pipe The Heat Pipe design effectively directs the heat generated by the chipsets - where it can be carried away by existing airflows from the CPU or chassis fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.

Description

	LGA771 Intel Xeon Processor Ready The Asus Z7S WS supports Intel Quad-Core & Dual-Core Xeon processors in LGA771 package.
	Intel 5400 chipset The Intel 5400 is designed to support Dual PCI Express graphics, along with the maximum 8GB dual-channel DDR2 667/533 architecture, 1066/800 FSB (front-side-bus), and Multi-Core CPU. Easily build an workstation or create a multimedia environment with its exceptionally high bandwidth. Together with the Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 975X satisfies multi-task processing and data security.
	PCIe 2.0 Double Speed; Double Bandwidth & Triple Performance The Asus Z7S WS supports PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
	ATI CrossFire Technology ATI´s CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATI´s Catalyst™ Control Center to rule your CrossFire system.
	Heat Pipe The Heat Pipe design effectively directs the heat generated by the chipsets - where it can be carried away by existing airflows from the CPU or chassis fan. This innovative and groundbreaking fanless heat pipe design effectively lowers temperatures without having lifetime problems that a normal chipset fan has. Furthermore, it provides options for users to install side-flow fans or a passive cooler. This Heat Pipe design is the most reliable fanless thermal solution to date.

Specifications

CPU Support

Supports Dual 771-pin LGA Sockets
Quad-Core Intel Xeon Processor 5400/5300 sequence
Dual-Core Intel Xeon Processor 5100 / 5000 sequence

Number of Processor (s)

Dual (Not Included)

Chipset

Intel 5400
Intel ESB2E

Front Side Bus (FSB)

1600 / 1333 / 1066 MHz

Number of Memory Slots

Type of Memory Supported

240-pin DDR2 800 / 667 / 533MHz ECC Fully Buffered DIMM

Maximum RAM

Supports up to 24GB

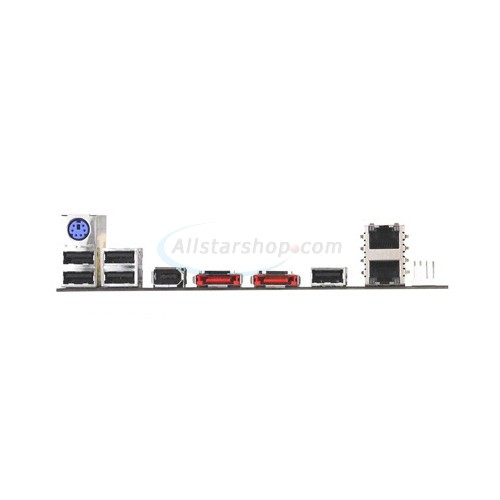

Back Panel I/O

1 x PS/2 Keyboard
5 x USB ports
2 x eSATA ports
1 x IEEE 1394 port
2 x RJ-45 LAN ports
1 x Audio I/O

Number of PCI/PCI Express Slots

3 x PCI-Express X16:
- 2 x PCI-Express X16 (X16 link)
- 1 x PCI-Express X16 (X8 link)
1 MIO PCIe X1 (ASUS proprietary)
1 x PCI-X 133/100 MHz
1 x PCI

Number of ISA Slots (16 Bit)

On-Board EIDE/Floppy

1 x EIDE channel support up to 2 UDMA IDE devices

Integrated IDE RAID

Integrated SATA/SAS

6 x SATA 3Gb/s

2 x eSATA 3Gb/s

Integrated SATA/SAS RAID

Intel Matrix Storage (Windows) support RAID 0, 1 and 5

Supports RAID 0, 1 and JBOD

Integrated Audio

Realtek 888S 8-channel High-Definition Audio CODEC

Integrated Video

Integrated LAN

2 x Marvell 88E8056 Gigabit LAN controllers

Integrated SCSI

USB

5 x USB ports on Back Panel I/O
3 x USB ports via headers

IEEE 1394

1 x IEEE 1394 port on Back Panel I/O
1 x IEEE 1394 port via header

Form Factor

CEB

Dimensions

12" x 10.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.

Package Contents

1 x Asus Z7S WS motherboard
6 x SATA Data Cables
3 x SATA Power Cables

1 x 2 in 1 (IDE & Floppy) Cable Set
1 x I/O Shield
1 x ASUS Motherboard Support CD
1 x User's Guide
