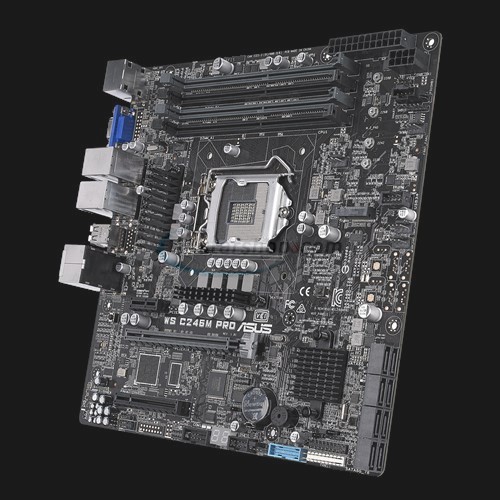

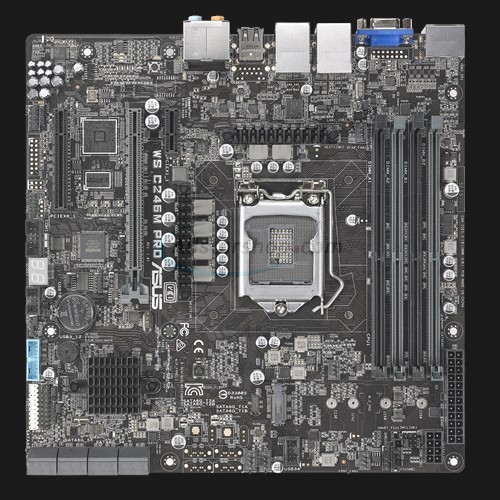

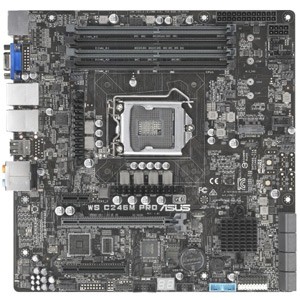

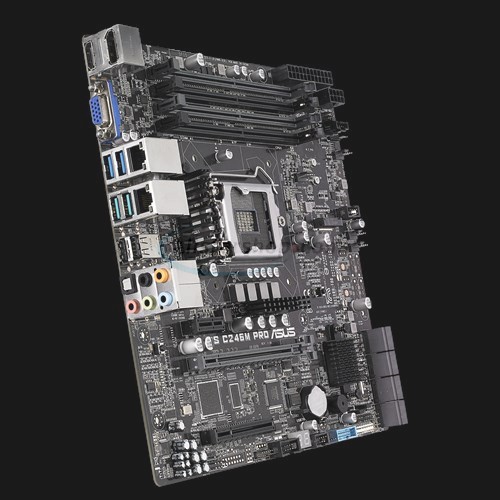

SKU: 800-51146C Mfg P/N: WS C246M PRO
  • Integrated Graphics - HDMI / DP / VGA
  • Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
  • 8x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 2x USB 3.1, 4x USB 3.0, 6x USB 2.0
  • 1x PCIe X16, 1x PCIe X8, 1x PCIe X1
Our Price: $248.95
List Price: $299.00 You save: $50.05
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
LGA1151 socket for Intel Xeon E-2100 family, Intel 8th Gen Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel C246 chipset
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
DDR4 2666/2400/2133 ECC/ non-ECC UDIMM
Maximum RAM
64GB
Back Panel I/O
  • 2 x USB 3.1 Gen2 Type-A ports
  • 2 x USB 3.0 (USB 3.1 Gen1) ports
  • 2 x USB 2.0 ports
  • 1 x VGA
  • 1 x HDMI
  • 1 x DisplayPort
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x8 (max. x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
8 x SATA6 Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & x4 PCIe mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC887 8-channel high definition audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • Intel I210-AT Gigabit LAN
  • Intel I219-LM Gigabit LAN
USB
    Up to 12 x USB ports:
    • 2 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • WS C246M PRO motherboard
  • User's manual
  • I/O Shield
  • Supporting CD
  • 6 x SATA 6Gb/s cables
  • 2 x M.2 Screw kits
  • 1 x Serial port bracket
