SKU: 800-51163C
  • Integrated Intel Graphics - HDMI / DP
  • Max 64GB / 4x DDR4 DIMM / Up to 4266(O.C.)
  • 6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.1 (1x USB-C), 4x USB 3.0, 6x USB 2.0
  • 3x PCIe x16, 3x PCIe x1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 9th, 8th Generation Intel Core i9 / i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z390 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum RAM
64GB

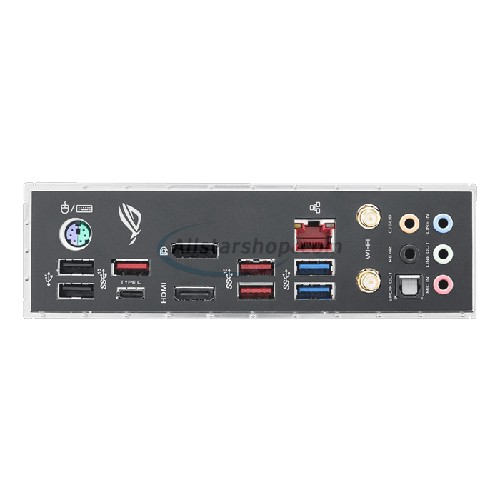

Back Panel I/O
  • 3 x USB 3.1 Gen2 Type-A ports
  • 1 x USB 3.1 Gen2 Type-C port
  • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 2 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ-45 LAN
  • 1 x Audio I/O
  • 1 x ASUS Wi-Fi Module
Number of PCI/PCI-Express Slots
  • 2 x PCIe 3.0 x16 (1x16 or dual x8)
  • 1 x PCIe 3.0 x16 (max. x4)
  • 3 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • Intel I219V Gigabit LAN
  • Intel Wireless-AC 9560 802.11 a/b/g/n/ac, Bluetooth 5.0
USB
    Up to 15 x USB ports:
    • 3 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 1 x USB 3.1 Gen2 port via header
    • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

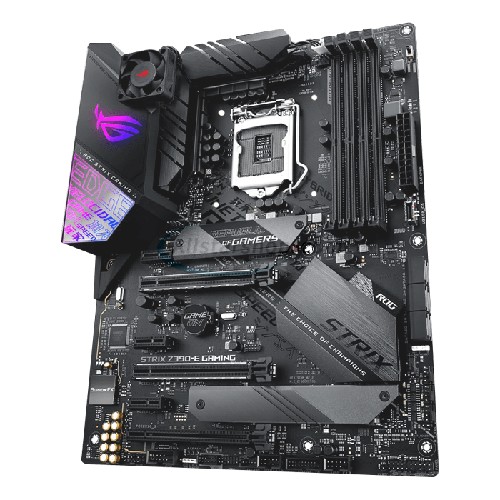

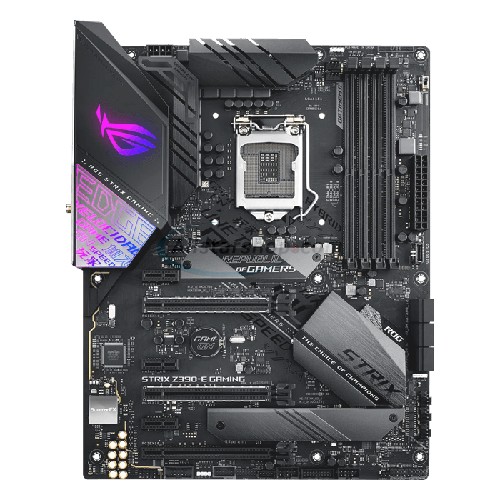

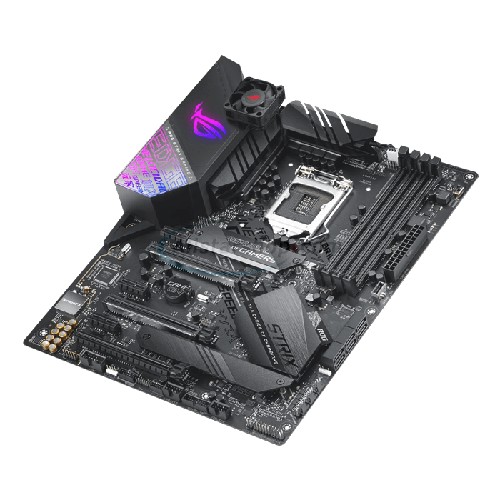

  • ROG Strix Z390-E Gaming motherboard
  • User's manual
  • Supporting DVD
  • 4 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x CABLE TIE BLACK
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x ROG Strix sticker
  • 1 x Assistant Fans(40mm)
  • 1 x screws for Assistant Fan
  • 1 x ROG Door Hanger
  • 1 x Extension Cable for RGB strips (80 cm)
  • 1 x Extension cable for Addressable LED
  • 1 x Thermistor cable
