SKU: 800-51008H
  • Integrated Intel Graphics - HDMI / DP
  • Max 64GB / 2x DDR4 DIMM / Up to 4800(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.2 G2 (2x USB-C), 4x USB 3.2 G1, 4x USB 2.0
  • 1x PCIe x16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1200 socket for 10th Generation Intel Core i9 / i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z490 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4 4800(O.C.) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB

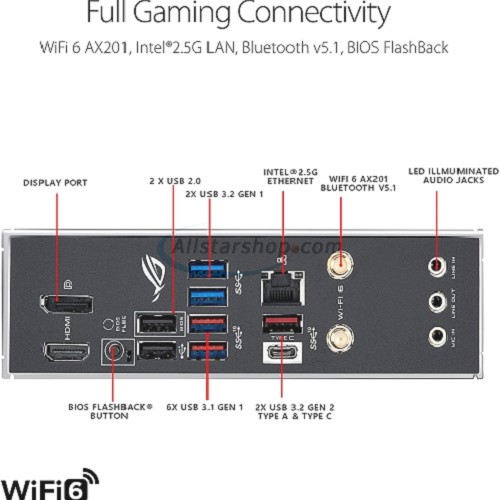

Back Panel I/O
  • 3 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 3.2 Gen 2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 Type-A ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x ASUS Wi-Fi Module
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
2 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 PCIE 3.0 x4 and SATA modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I225-V 2.5 Gigabit LAN
Integrated Wifi
Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
USB
  • 3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen2 port via header
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 Type-A ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

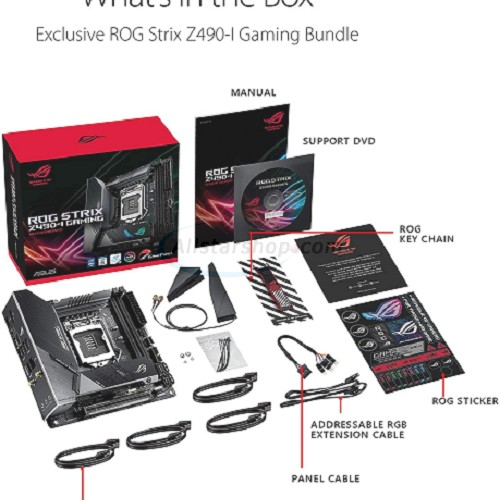

Package Contents

  • Asus ROG STRIX Z490-I GAMING motherboard
  • User's manual
  • 1 x Supporting DVD
  • 4 x SATA 6Gb/s cables
  • 2 x M.2 Screw Packages
  • 1 x CABLE TIE BLACK
  • 1 x ROG Strix sticker
  • 1 x Extension cable for Addressable LED
  • 1 x Panel cable
  • 1 x ROG Thank you card
  • 1 x Wi-Fi moving antenna
  • 1 x ROG key chain
