SKU: 800-51162C
  • Integrated Intel Graphics - HDMI / DP
  • Max 32GB / 4x DDR4 DIMM / Up to 4500(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • Up to 3x USB 3.1, 5x USB 3.0 (1x USB-C), 4x USB 2.0
  • 1x PCIe X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1151 socket for 9th, 8th Generation Intel Core i9 / i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z390 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
2
Type of Memory Supported
288-pin DDR4 4500(OC) / 4400(OC) / 4333(OC) 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
64GB

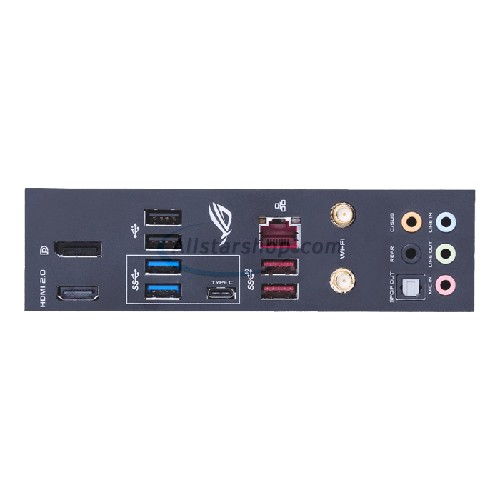

Back Panel I/O
  • 2 x USB 3.1 Gen2 Type-A ports
  • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 2 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x 1 x ASUS Wi-Fi GO! module
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
2 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • Intel I219V Gigabit LAN
  • Intel Wireless-AC 9560 802.11 a/b/g/n/ac, Bluetooth 5.0
USB
    Up to 12 x USB ports:
    • 2 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-A port via header
    • 4 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 2 x USB 2.0 ports on Back Panel I/O
    • 2 x USB 2.0 ports via headers
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • ROG STRIX Z390-I GAMING motherboard
  • User's manual
  • Supporting DVD
  • 4 x SATA 6Gb/s cables
  • 2 x M.2 Screw Package
  • M.2 2242 mounting kit
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas
  • 1 x CABLE TIE BLACK
  • 1 x ROG Strix stickers
  • 1 x 10-in-1 ROG cable label
  • 1 x Extension cable for Addressable LED
  • 1 x Panel cable
