SKU: 800-51172E
  • Integrated Radeon Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 6400+ (O.C.)
  • 4x SATA 6GB/s, 4x M.2 / RAID 0, 1, 10
  • Up to 14x USB 3.2 G2 (3x USB-C), 2x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe 5.0 x16, 1x PCIe 4.0 x16
Our Price: Login to see price
Availability: Usually ships same day


Specifications

CPU Support
AMD Ryzen 7000 series processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X670E
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800, ECC and Non-ECC, Un-buffered Memory
Maximum RAM
128GB

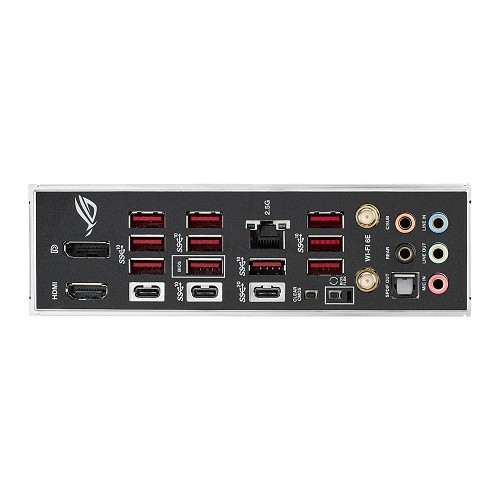

Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 2 x USB 3.2 Gen2 Type-C ports
  • 10 x USB 3.2 Gen2 Type-A ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 1 x Wi-Fi Module
Number of PCI/PCI-Express Slots
  • 2 x PCIe 5.0 x16 (single x16, dual x8/x4)
  • 1 x PCIe 4.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 2 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 5.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 5.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel 2.5 Gb Ethernet
Integrated Wifi
2x2 Wi-Fi 6E & Bluetooth v5.2
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 2 x USB 3.2 Gen2 Type-C ports on Back Panel I/O
  • 10 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 6 x USB 2.0
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

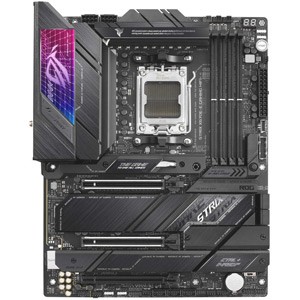

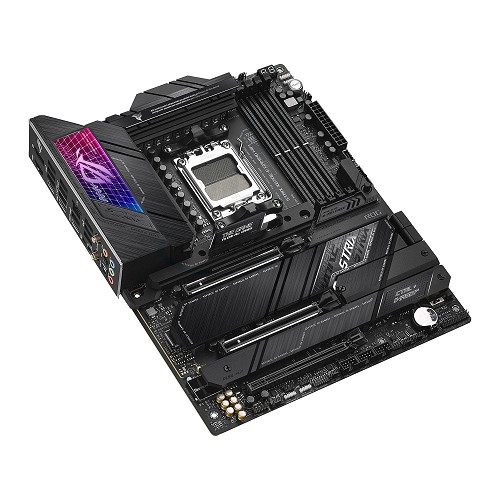

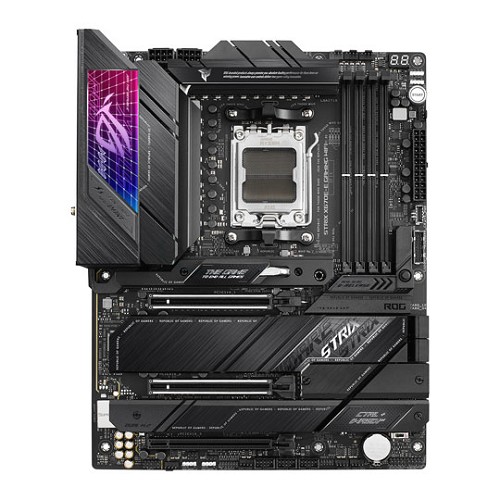

  • Asus ROG STRIX X670E-E GAMING WIFI motherboard
  • User Manual
  • 2 x SATA cables
  • 1 x Thermal pad for M.2
  • 2 x Rubber Packages for M.2
  • 1 x Rubber Package for M.2 backplate
  • 1 x Massive M.2 Heatsink
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 1 x M.2 Q-Latch package
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties pack
  • 1 x ROG Graphics card holder
  • 1 x ROG key chain
  • 1 x ROG Strix sticker
  • 1 x ROG Strix thank you card
