SKU: 800-51097F
  • Integrated Intel Graphics - HDMI, Thunderbolt 5 USB-C, Thunderbolt 4 USB-C
  • Max 192GB / 4x DDR5 DIMM / Up to 9066+ (O.C.)
  • 4x SATA 6GB/s, 5x M.2 / RAID 0, 1, 10, 5
  • Up to 3x Thunderbolt USB-C, 7x USB 3.2 G2 (1x USB-C), 2x USB 3.2 G1, 3x USB 2.0
  • 2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4)
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1851 socket for Intel Core Ultra Processors (Series 2)
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z890 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-9066(O.C.)+ / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
192GB
Back Panel I/O
  • 2 x Thunderbolt 5 USB Type-C port
  • 1 x Thunderbolt 4 USB Type-C port
  • 6 x USB 3.2 Gen2 Type-A ports
  • 1 x USB 2.0
  • 1 x DisplayPort (Input only)
  • 1 x HDMI
  • 2 x RJ45 LAN
  • 1 x Audio I/O
  • Wi-Fi module
Number of PCI/PCI-Express Slots
  • 2 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 electrical)
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 with M key, type 2242/2260/2280/22110 supports PCIe 5.0 x4 mode
  • 3 x M.2 with M key, type 2242/2260/2280 support PCIe 5.0 x4 mode
  • 1 x M.2 with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode
Integrated SATA/SAS RAID
RAID 0, 1, 10, 5
Integrated Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
  • Marvell AQtion 10Gb Ethernet
  • Intel 2.5Gb Ethernet
Integrated Wifi
Wi-Fi 7 (802.11be) & Bluetooth v5.4
USB
  • 2 x Thunderbolt 5 USB Type-C port on Back Panel I/O
  • 1 x Thunderbolt 4 USB Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 6 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 1 x USB 2.0 on Back Panel I/O
  • 2 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

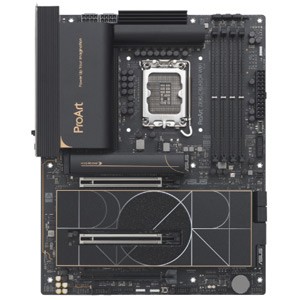

  • Asus ProArt Z890-CREATOR WIFI motherboard
  • Quick start guide
  • ACC Express activation key card
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS WiFi Q-Antenna
  • 1 x Q-connector
  • 2 x M.2 Q-Latch packages
  • 2 x M.2 rubber packages
  • 1 x ProArt accessory bag

Compatible Accessories

CPU

Intel Core Ultra 5 245K 14-Core LGA1851 w/24MB cache CPU (BOX)
  • 14x Cores / 14x Threads / Turbo Boost: 5.2 GHz
  • P-core: 6 / Base: 4.2 GHz / Turbo: 5.2 GHz
  • E-core: 14 / Base: 3.6 GHz / Turbo: 4.6 GHz
  • Base: 125W / Max Turbo 250W
  • Intel Graphics / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80768245K
Availability: Usually ships with 1-2 business days
Intel Core Ultra 7 265K 20-Core LGA1851 w/30MB cache CPU (BOX)
  • 20x Cores / 20x Threads / Turbo Boost: 5.5 GHz
  • P-core: 8 / Base: 3.9 GHz / Turbo: 5.4 GHz
  • E-core: 12 / Base: 3.3 GHz / Turbo: 4.6 GHz
  • Base: 125W / Max Turbo: 250W
  • Intel Graphics / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80768265K
Availability: Usually ships with 1-2 business days
Intel Core Ultra 9 285K 24-Core LGA1851 w/36MB cache CPU (BOX)
  • 24x Cores / 24x Threads / Turbo Boost: 5.7 GHz
  • P-core: 8 / Base: 3.7 GHz / Turbo: 5.5 GHz
  • E-core: 16 / Base: 3.2 GHz / Turbo: 4.6 GHz
  • Base: 125W / Max Turbo 250W
  • Intel Graphics / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX80768285K
Availability: Temporarily out of stock

Memory

Kingston 16GB DDR5-5600 CL46 1Rx8 288-pin UDIMM
  • PC5-44800
  • Single-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR56U46BS8-16
Availability: Usually ships with 1-2 business days
Kingston 32GB DDR5-5600 CL46 2Rx8 288-pin DIMM
  • PC5-44800
  • Dual-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
Manufacturer: Kingston
Mfg P/N: KVR56U46BD8-32
Availability: Usually ships with 1-2 business days
Kingston 48GB DDR5-5600 CL46 2Rx8 288-pin DIMM
  • PC5-44800
  • Dual-Rank x8
  • DDR5-5600 46-45-45 @ 1.1V
  • 24-bit
Manufacturer: Kingston
Mfg P/N: KVR56U46BD8-48
Availability: Usually ships with 1-2 business days
Kingston Fury Beast 16GB DDR5-6400 CL32 288-pin DIMM
  • PC5-51200
  • Single-Rank x8
  • Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
  • EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
  • EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
Manufacturer: Kingston
Mfg P/N: KF564C32BBE-16
Availability: Usually ships with 1-2 business days
Kingston Fury Beast 32GB DDR5-6400 CL32 288-pin DIMM
  • PC5-51200
  • Dual-Rank x8
  • Default PnP: DDR5-4800 CL40-39-39 @1.1V
  • EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
  • EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
Manufacturer: Kingston
Mfg P/N: KF564C32BBE-32
Availability: Usually ships with 1-2 business days

SSD

Crucial T500 2TB NVMe PCIe 4.0 M.2 SSD
  • Sequential Read (up to): 7,400 MB/s / Write (up to): 7,000 MB/s
  • Endurance Rating: 1200 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Crucial
Mfg P/N: CT2000T500SSD8
Availability: Usually ships with 1-2 business days
Samsung 990 EVO Plus 2TB NVMe PCIe 5.0 M.2 SSD
  • Sequential Read (up to): 7,250 MB/s / Write (up to): 6,300 MB/s
  • Random QD32 Read (up to): 1,000K IOPS / Write (up to): 1,350K IOPS
  • Endurance Rating: 1200 TBW
  • MTBF: 1.5M hours
  • Form Factor: M.2 22 x 80mm
Manufacturer: Samsung
Mfg P/N: MZ-V9S2T0B/AM
Availability: Usually ships with 1-2 business days
WD_BLACK SN850X 2TB PCIe NVMe Gen4 x4 M.2 2280 SSD
  • Sequential Read (up to): 7,300MB/s / Write (up to): 6,600MB/s
  • Random Read (up to): 1,200K IOPS / Write (up to): 1,100K IOPS
  • Endurance Rating: 1200 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS200T2X0E
Availability: Usually ships with 1-2 business days

Software

Microsoft Windows 11 Home 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: KW9-00633
Availability: Usually ships with 1-2 business days
Microsoft Windows 11 Pro 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: FQC-10529
Availability: Usually ships with 1-2 business days
