SKU: 800-51177C
  • Max 128GB / 4x DDR4 DIMM / Up to 5100(O.C.)
  • 4x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G2 (2x USB-C), 3x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 3x PCIe x16, 2x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 5100(O.C) / 4800(O.C.) / 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

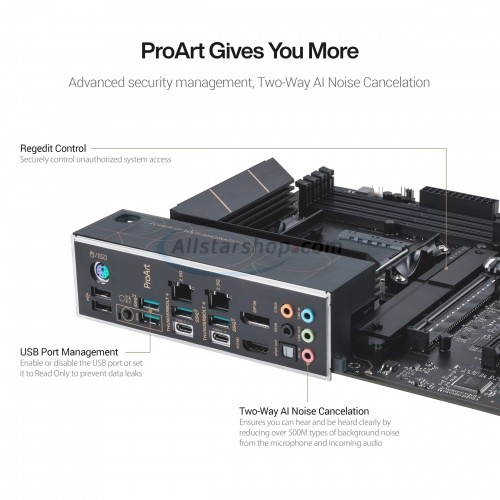

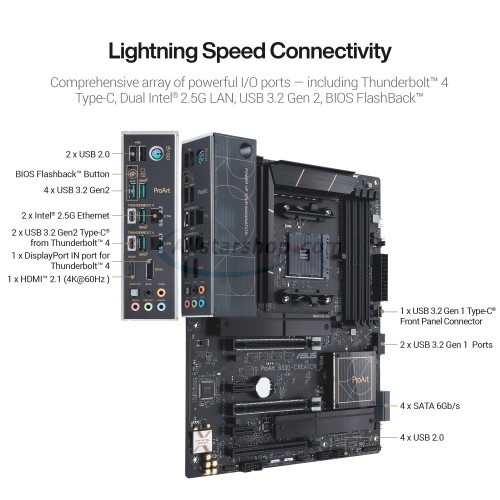

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo port
  • 2 x Thunderbolt 4 USB Type-C ports
  • 4 x USB 3.2 Gen2 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x DisplayPort (Input only)
  • 1 x HDMI
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 2 x PCIe X16:
    • 3rd Gen AMD Ryzen: single 4.0 x16 or dual 4.0 x8
    • 2nd Gen AMD Ryzen: single 3.0 x16 or dual 3.0 x8
  • 1 x PCIe 3.0 X16 (Max x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support SATA and up to PCIe 4.0 x4 with AMD Ryzen 5000 / 3000 Series processors or PCIe 3.0 x4 with 2nd Gen Ryzen
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support SATA and up to PCIe 3.0 x4
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220A 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
2 x Intel I225-V 2.5 Gigabit LAN
USB
  • 2 x Thunderbolt 4 USB Type-C ports on Back Panel I/O
  • 4 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
  • PS/2 Ports
    1 x PS/2 Keyboard/Mouse combo port
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

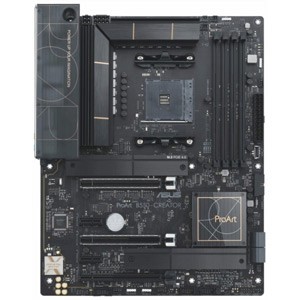

    • Asus ProArt B550-Creator motherboard
    • User manual
    • Support DVD
    • 2 x SATA 6Gb/s cables
    • 1 x DP to DP cable for Thunderbolt 4
    • 1 x M.2 Rubber Package
