SKU: 800-51152E
  • Max 128GB / 4x DDR4 DIMM / Up to 4400(O.C.)
  • 4x SATA 6GB/s, 2x M.2, 1x U.2 / RAID 0, 1, 10
  • Up to 5x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1, 4x USB 2.0
  • 3x PCIe x16, 1x PCIe x1
Our Price: $398.95
List Price: $469.95 You save: $71.00
Availability: Usually ships same day
Quantity:


Specifications

CPU Support
AMD AM4 3rd and 2nd Gen Ryzen processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD X570
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 3000 / 2933 /2800 / 2666 / 2400 / 2133 MHz Un-buffered Memory
Maximum RAM
128GB

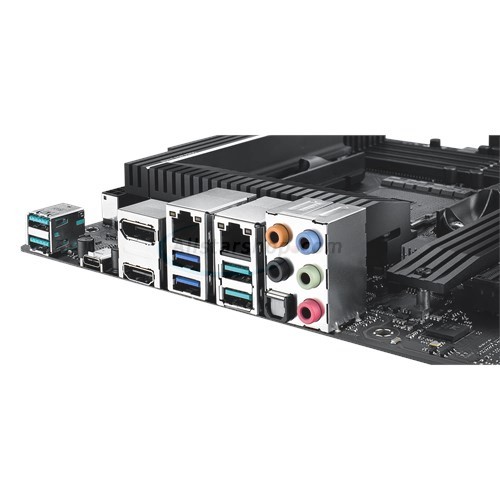

Back Panel I/O
  • 4 x USB 3.2 Gen 2 Type-A ports
  • 1 x USB 3.2 Gen 2 Type-C port
  • 2 x USB 3.2 Gen 1 Type-A ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 2 x PCIe x16:
    • 3rd Gen Ryzen: 2 x PCIe 4.0 x16 (x16 or dual x8)
    • 2nd Gen Ryzen: 2 x PCIe 3.0 x16 (x16 or dual x8)
    • 2nd Gen Ryzen with Radeon Vega Graphics: 1 x PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe 4.0 x16 (max at x8 mode)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110:
    • 3rd Gen Ryzen: PCIE 4.0 x4 and SATA modes
    • 2nd Gen Ryzen: PCIE 3.0 x4 and SATA modes
  • 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 PCIE 4.0 x2 modes storage devices support
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek S1200A 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
  • Intel I211-AT Gigabit LAN
  • Realtek RTL8117 Gigabit LAN
USB
  • 4 x USB 3.2 Gen 2 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen 1 Type-A port via header
  • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12" x 9.6"
Additional information
1 x U.2

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

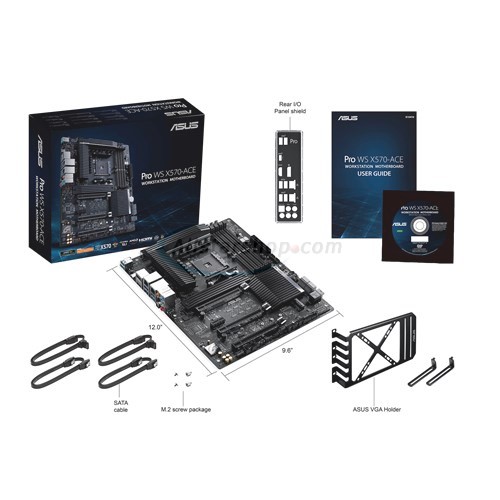

Package Contents

  • Asus Pro WS X570-ACE
  • User's manual
  • I/O Shield
  • 4 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x Supporting DVD
  • 1 x ASUS VGA Holder
