SKU: 800-51086E
  • Max 128GB / 4x DDR4 DIMM / Up to 4866(O.C.)
  • 4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 3.0 X16, 2x PCIe X1, 1x PCI
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
AMD AM4 Socket for Ryzen 5000 / 5000G / 4000G / 3000 Series Processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD A520
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4866(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

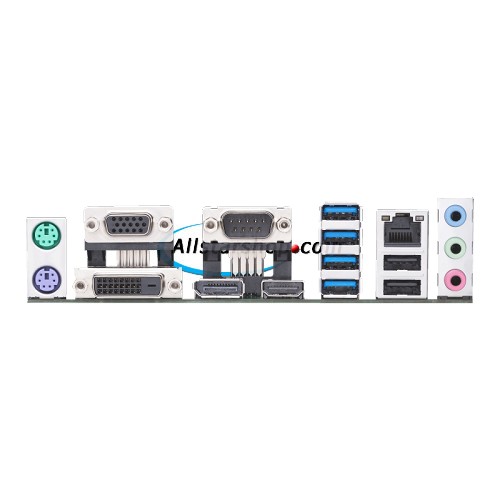

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x VGA
  • 1 x DVI-D
  • 1 x RJ45 LAN
  • 1 x Serial port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x1
  • 1 x PCI
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket, with M Key, Type 2242/2260/2280/22110 supports PCIe 3.0 x4 and SATA storage devices
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek RTL8111H Gigabit LAN
USB
  • 4 x USB 3.2 Gen1 Type-A on Back Panel I/O
  • 2 x USB 3.2 Gen1 via header
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port on Back Panel I/O
PS/2 Ports
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
Form Factor
Micro ATX
Dimensions
9.6" x 9.02"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

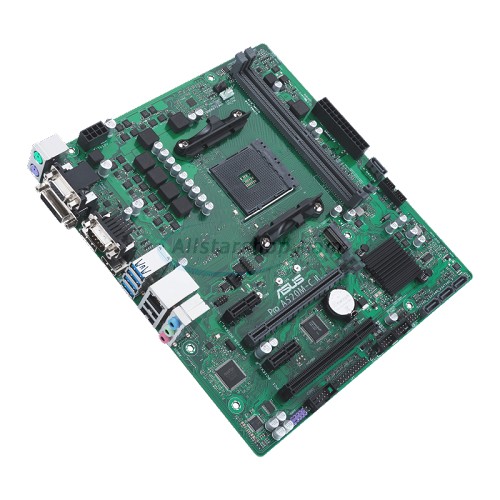

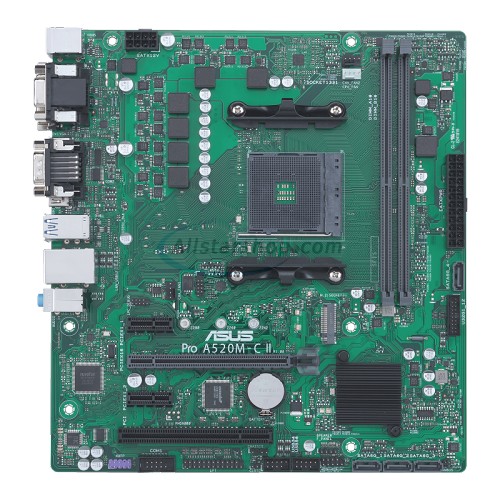

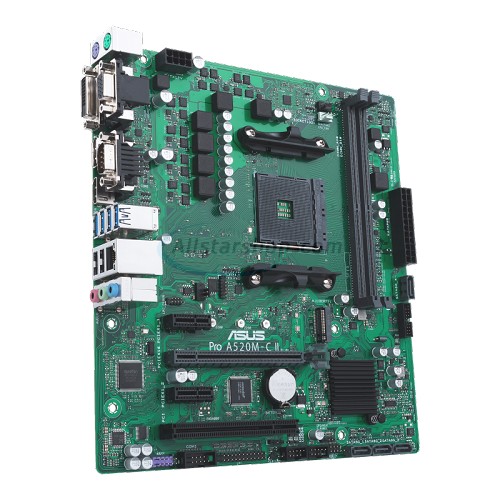

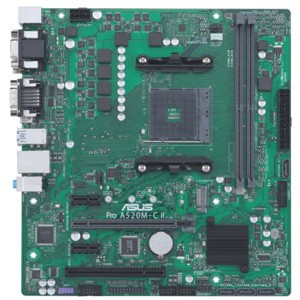

  • Asus Pro A520M-C II motherboard
  • User's manual
  • ACC Express Activation Key Card
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 SSD screw package

Compatible Accessories

CPU

AMD Ryzen 5 5600X 6-Core 3.7GHz /3MB cache AM4 CPU (Retail)
  • 6x Cores / 12x Threads / Turbo CORE SPEED: 4.6 GHz
  • TDP: 65W
  • Heatsink/Fan: Wraith Stealth
  • No Integrated Graphics
Manufacturer: AMD
Mfg P/N: 100-100000065BOX
Availability: Usually ships with 1-2 business days

Memory

Kingston 16GB DDR4-3200 CL22 2Rx8 288-pin DIMM
  • PC4-25600
  • Dual-Rank x8
  • DDR4-3200 22-22-22 @ 1.2V
Manufacturer: Kingston
Mfg P/N: KVR32N22D8/16
Availability: Usually ships with 1-2 business days
Kingston 8GB DDR4-3200 CL22 1Rx8 288-pin DIMM
  • PC4-25600
  • Single-Rank x8
  • DDR4-3200 22-22-22 @ 1.2V
Manufacturer: Kingston
Mfg P/N: KVR32N22S8/8
Availability: Usually ships with 1-2 business days

Hard Drives

WD Blue 1TB 7200RPM 64MB Buffer SATA 6Gb/s 3.5" HDD (Drive Only)
  • 2-year Warranty
Manufacturer: Western Digital
Mfg P/N: WD10EZEX
Availability: Usually ships same day
