SKU: 800-51052F
  • Integrated Graphics - HDMI / DisplayPort
  • Max 64GB / 4x DDR4 DIMM / Up to 3600(O.C.)
  • 6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 10
  • Up to 3x USB 3.1, 8x USB 3.0 (1x USB-C), 4x USB 2.0
  • 3x PCIe X16, 3x PCIe X1
Our Price: $151.75
List Price: $229.00 You save: $77.25
Discontinued - Not orderable


Specifications

CPU Support
AMD AM4 Socket AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics Ryzen 1st Generation / 7th Generation A-series / Athlon X4 Processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD X470
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
  • AMD Ryzen 2nd Generation Processors DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  • AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  • AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/2133 MHz Un-buffered Memory
Maximum RAM
64GB

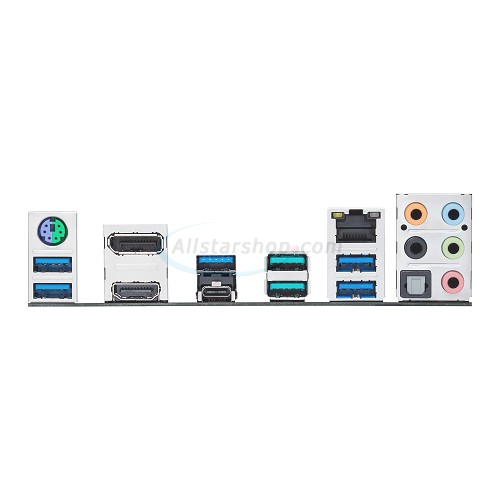

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 2 x USB 3.1 Gen 2 Type-A ports
  • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port
  • 5 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • AMD Ryzen 2nd Generation/ Ryzen 1st Generation Processors
    • 2 x PCIe 3.0 x16 (x16 or dual x8)
  • AMD Ryzen with Radeon Vega Graphics /7th Generation A-Series/Athlon X4 Processors
    • 1 x PCIe 3.0 x16 (x8 mode)
  • AMD X470 chipset
    • 1 x PCIe 2.0 x16 (max at x4 mode)
    • 3 x PCIe 2.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices:
    • AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors support (SATA & PCIE 3.0 x 4 mode)
    • AMD 7th Generation A-Series/Athlon X4 Processors support (SATA mode)
  • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek S1220A 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Intel I211-AT Gigabit LAN
USB
    Up to 15 x USB ports:
    • 2 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 via header
    • 1 x USB 3.0 (USB 3.1 Gen1) Type-C port on Back Panel I/O
    • 5 x USB 3.0 (USB 3.1 Gen1) Type-A ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 4 x USB 2.0 via headers
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

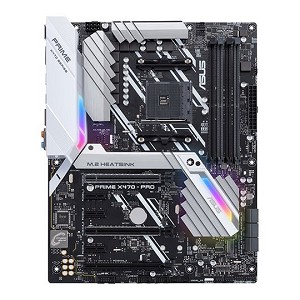

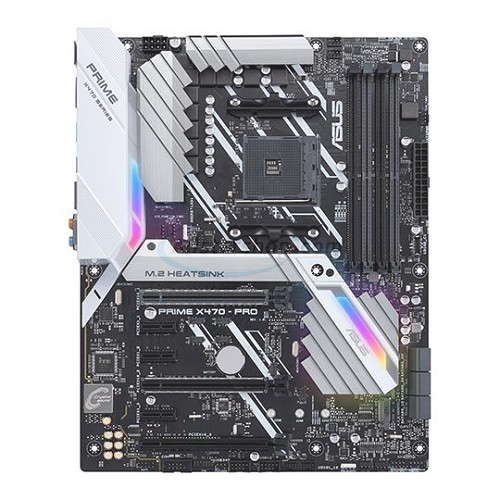

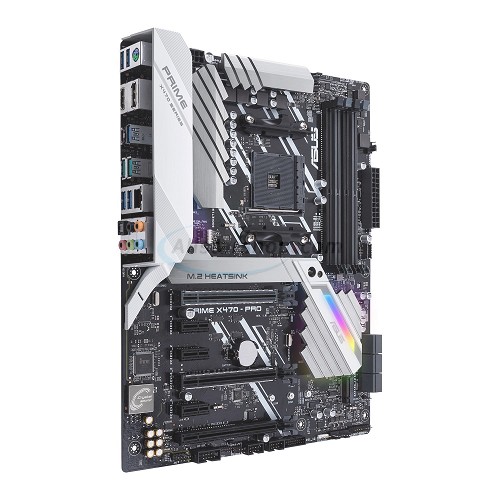

  • Prime X470-Pro motherboard
  • User's manual
  • 1 x Supporting CD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 Screw Package
  • 1 x SLI HB BRIDGE(2-WAY-M)
  • 1 x Q-connector
