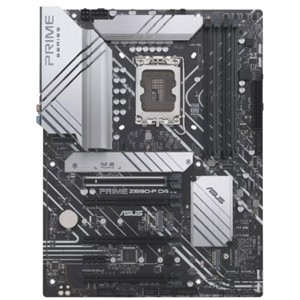

Asus PRIME Z690-P D4 LGA1700 ATX Motherboard - (Discontinued)

Support: (812)282-2787

Asus PRIME Z690-P D4 LGA1700 ATX Motherboard - (Discontinued)

SKU:	800-51101F

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR4 DIMM / Up to 5333 (O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
2x USB 3.2 G2 (1x USB-C), 6x USB 3.2 G1 (1x USB-C), 6x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x16, 1x PCIe 1x

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-12600K 10-Core LGA1700 w/20MB cache CPU (BOX)

: Intel Core i7-12700K 12-Core LGA1700 w/25MB cache CPU (BOX)

: Intel Core i9-12900K 16-Core LGA1700 w/30MB cache CPU (BOX)

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z690-P D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Description

Specifications

CPU Support

LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel Z690 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum RAM

128GB

Back Panel I/O

1 x PS/2 Keyboard/Mouse combo port
1 x USB 3.2 Gen 2x2 Type-C port
1 x USB 3.2 Gen 2 Type-A port
2 x USB 3.2 Gen 1 Type-A ports
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI
1 x V-M.2 slot
1 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 5.0/4.0/3.0 x16
1 x PCIe 4.0/3.0 x16 (max x4)
2 x PCIe 3.0 x16 (max x4)
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 & SATA modes

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek 2.5Gb Ethernet

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2 Type-A port on Back Panel I/O
2 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen 1 Type-C port via header
4 x USB 3.2 Gen 1 Type-A ports via headers
2 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

PS/2 Ports

1 x PS/2 Keyboard/Mouse combo port

Form Factor

ATX

Dimensions

12" x 9.2"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
