SKU: 800-51091E
  • Integrated Intel Graphics - DVI / VGA
  • Max 32GB / 2x DDR4 DIMM / Up to 2666
  • 4x SATA 6Gb/s, 1x M.2
  • Up to 2x USB 3.0, 6x USB 2.0
  • 1x PCIe X16, 2x PCIe X1, 1x PCI
Our Price: $83.25
List Price: $94.95 You save: $11.70
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

CPU Support
LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel H310 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
2
Type of Memory Supported
288-pin DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Maximum RAM
32GB
Back Panel I/O
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 2 x USB 3.0 (USB 3.1 Gen1) Type-A ports
  • 4 x USB 2.0 ports
  • 1 x DVI-D
  • 1 x VGA
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 2.0 x1
  • 1 x PCI
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek RTL8111H Gigabit LAN
USB
    Up to 8 x USB ports:
    • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 4 x USB 2.0 Ports on Back Panel I/O
    • 2 x USB 2.0 ports via headers
Serial/Parallel Ports
  • 2 x Serial port via header
  • 1 x Parallel Port via header
PS/2 Ports
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
Form Factor
microATX
Dimensions
9.6" x 7.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

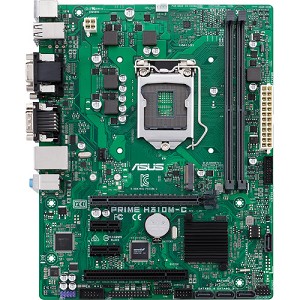

  • PRIME H310M-C R2.0 motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 Package
