SKU: 800-51085E
  • Max 128GB / 4x DDR4 DIMM / Up to 4866(O.C.)
  • 4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
  • Up to 6x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 3.0 X16, 2x PCIe X1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
AMD AM4 Socket for Ryzen 5000 / 5000G / 4000G / 3000 Series Processors
Number of Processor (s)
Single (Not Included)
Chipset
AMD A520
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4866(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

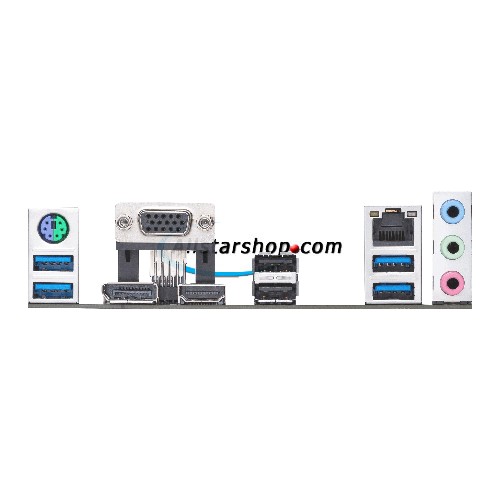

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse combo port
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x VGA
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 Socket, with M Key, Type 2242/2260/2280/22110 supports PCIe 3.0 x4 and SATA storage devices
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
Realtek RTL8111H Gigabit LAN
USB
  • 4 x USB 3.2 Gen1 Type-A on Back Panel I/O
  • 2 x USB 3.2 Gen1 via header
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via header
Serial/Parallel Ports
1 x Serial port via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse combo port
Form Factor
Micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Asus Prime A520M-A II motherboard
  • User's manual
  • Supporting DVD
  • I/O Shield
  • 2 x SATA 6Gb/s cables
  • 1 x M.2 SSD screw package
