SKU: 800-51144W
  • Max 16GB / 4 x Dimm DDR3 2200(OC)/1600/1333/1066
  • 2 x SATA 6Gb/s, 7 x SATA, 1 x eSATA / RAID 0, 1, 10, 5 / 1 x IDE / 0 x FDD
  • Up to 2 x USB 3.0, 12 x USB 2.0, 2 x IEEE 1394a
  • 2 x PCI-E 2.0 X16, 3 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel P55
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2200(OC)/1600/1333/1066 Memory
Maximum RAM
16GB

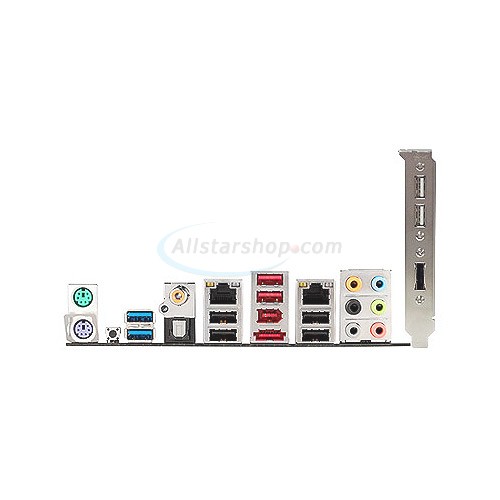

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 mouse
  • 1 x Coaxial + Optical S/PDIF Out
  • 1 x eSATA port
  • 2 x USB 3.0 ports
  • 6 x USB 2.0 ports
  • 2 x RJ45 LAN ports
  • 1 x IEEE 1394 port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 2 x PCI-Express 2.0 X16:
      • Single VGA: X16
      • Dual VGA: X8, X8
    • Supports NVIDIA Quad-GPU SLI Technology
    • Supports ATI Quad-GPU CrossFireX Technology
    • 3 x PCI-Express X1:
      • 2 at 5GT/s [blue]; 1 at 2.5GT/s [gray]
    • 2 x PCI
    On-Board EIDE/Floppy
    1 x UltraDMA 100/66/33 channel
    Integrated SATA/SAS
      Intel P55:
      • 6 x SATA II 3.0Gb/s
      JMicron JMB363:
      • 1 x SATA II 3.0Gb/s
      • 1 x eSATA 3.0Gb/s
      Marvell PCIe SATA6Gb/s controller:
      • 2 x SATA 6.0 Gb/s ports
    Integrated SATA/SAS RAID
      Intel :
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    VIA VT2020 10-Channel High Definition Audio CODEC
    Integrated Video
    No
    Integrated LAN
    2 x Realtek 8112L Gigabit LAN controller
    USB
      Up to 14 x USB ports:
      • 8 x USB ports on Back Panel I/O:
        • 2 x USB 3.0 ports by NEC USB 3.0 controller
          •
        • 6 x USB 2.0 ports
      • 6 x USB 2.0 ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    1 x COM port header
    PS/2 Ports
    • 1 x PS/2 Keyboard
    • 1 x PS/2 mouse
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

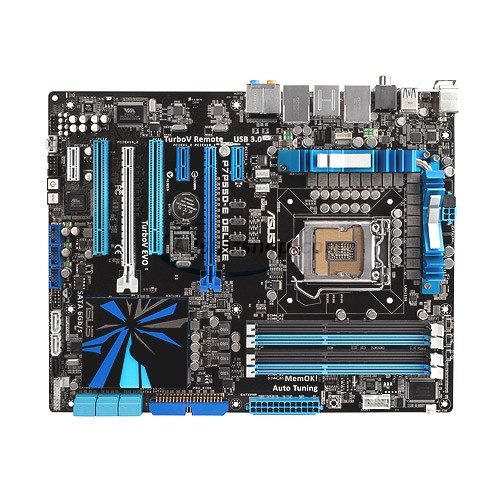

    • 1 x P7P55D-E Deluxe motherboard

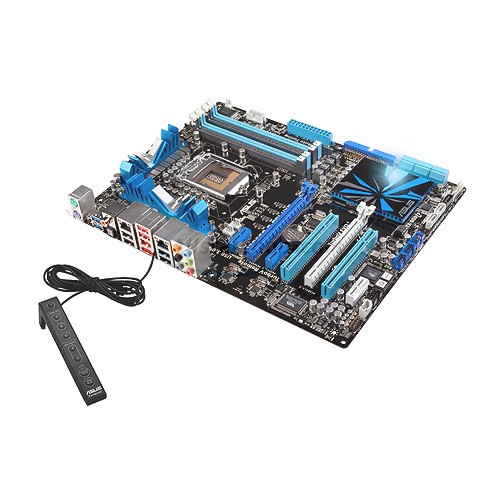

    • 1 x TurboV Remote
    • 1 x IDE cable
    • 2 x SATA 6Gb/s cables
    • 2 x SATA cables
    • 1 x 2-port USB and eSATA module
    • 2 in 1 Q-connector
    • ASUS Q-Shield
    • 1 x ASUS SLI bridge connector
    • User's manual
