SKU: 800-51155
  • Integrated Intel Graphics - DVI-D / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 2133(OC)/1333/1066
  • 2 x SATA 6Gb/s, 6 x SATA, 1 x eSATA / 1 x IDE / 0 x FDD
  • Up to 2 x USB 3.0, 12 x USB 2.0, 2 x IEEE 1394a
  • 2 x PCI-E 2.0 X16, 3 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
    • Intel Core i3
    • Intel Pentium
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel H57
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2133(OC)/1333/1066 Memory
Maximum RAM
16GB

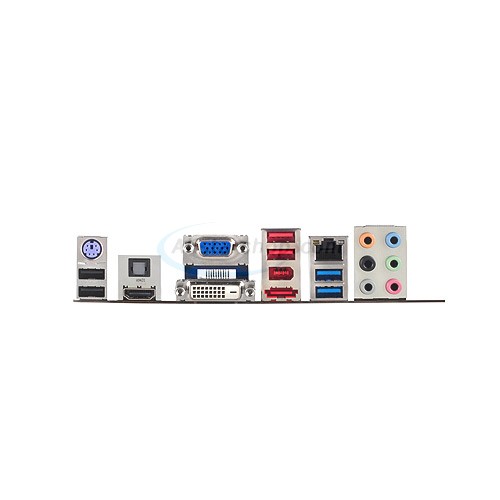

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 2 x USB 3.0 ports
  • 4 x USB 2.0 ports
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x DVI-D
  • 1 x Optical S/PDIF Out
  • 1 x eSATA port
  • 1 x RJ45 LAN port
  • 1 x IEEE 1394a port
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 2 x PCI-Express 2.0 X16:
      • Single VGA: X16
      • Dual VGA: X8, X8
    • 1 x PCI-Express X1 (5GT/s, blue slot)
    • 2 x PCI-Express X1 (2.5GT/s, gray slots)
    • 2 x PCI
    On-Board EIDE/Floppy
    1 x UltraDMA 133/100 for up to 2 PATA devices
    Integrated SATA/SAS
      Intel H57 Express:
      • 6 x SATA II 3.0Gb/s
      Marvell SATA 6Gb/s:
      • 2 x SATA 6.0 Gb/s ports
       Marvell 88SE6111
      • 1 x eSATA 3.0Gb/s
    Integrated SATA/SAS RAID
    No
    Integrated Audio
    Realtek ALC889 8-Channel High Definition Audio CODEC
    Integrated Video
    • Onboard motherboard display functionality requires a processor with Intel Graphics Technology
    • Multi-VGA output support: HDMI, DVI-D and RGB ports
    • Supports HDMI with max. resolution 1920x 1200 @ 60Hz
    • Supports DVI with max. resolution 1920x 1200 @ 60Hz
    • Supports RGB with max. resolution 2048x 1536 @ 75 Hz
    • Maximum shared memory of 1748 MB
    Integrated LAN
    Realtek 8112L Gigabit LAN controller
    USB
      Up to 14 x USB ports:
      • 2 x USB 3.0 ports on the Back Panel I/O
      • 4 x USB 2.0 ports on Back Panel I/O
      • 8 x USB 2.0 ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    • 1 x Serial port via header
    PS/2 Ports
    • 1 x PS/2 Keyboard
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

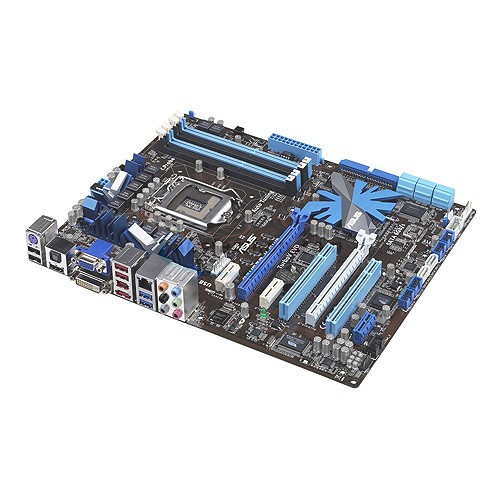

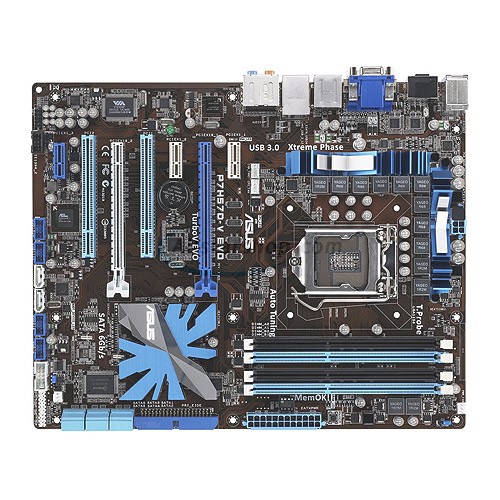

    • 1 x Asus P7H57D-V EVO motherboard
    • 1 x UltraDMA 133/100/66 cable
    • 2 x SATA 6.0 Gb/s cables
    • 2 x SATA cables
    • 2 in 1 Q-connector
    • 1 x 2-port USB and eSATA module
    • 1 x I/O Shield
    • User's manual
