SKU: 800-51142X
  • Max 24GB / 6 x Dimm DDR3 2000(OC)/1600/1333/1066
  • 2 x SATA 6Gb/s, 6 x SATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 2 x USB 3.0, 8 x USB 2.0, 2 x IEEE 1394a
  • 3 x PCI-E 2.0 X16, 1 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1366 socket:
    • Intel Core i7 Extreme
    • Intel Core i7
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel X58
  • Intel ICH10R
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
6
Type of Memory Supported
240-pin DDR3 2000(OC)/1600/1333/1066 memory
Maximum RAM
24GB

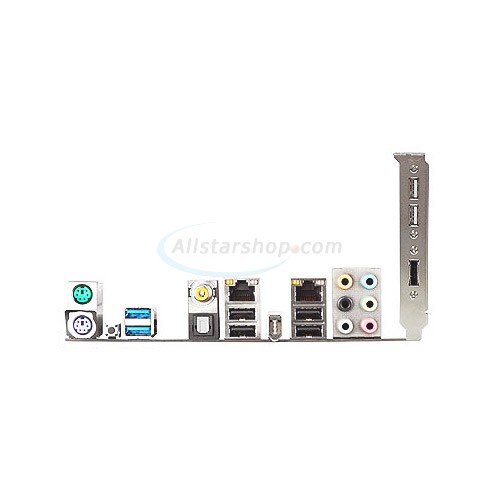

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 mouse
  • 1 x Coaxial + Optical S/PDIF Out
  • 2 x USB 3.0 ports
  • 4 x USB 2.0 ports
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 3 x PCI-Express 2.0 X16:
      • X16/X8/X8
          • OR
      • X16/X16/X1
    • 1 x PCI-Express X1
    • 2 x PCI
    On-Board EIDE/Floppy
    No
    Integrated SATA/SAS
      Intel ICH10R:
      • 6 x SATA II 3.0Gb/s
      Marvell PCIe SATA 6Gb/s controller:
      • 2 x SATA 6Gb/s
    Integrated SATA/SAS RAID
      Intel ICH10R:
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    Realtek ALC889 8-Channel High Definition Audio CODEC
    Integrated Video
    No
    Integrated LAN
    2 x Marvell 88E8056 PCIe Gigabit LAN controllers
    USB
      Up to 10 x USB ports:
      • 2 x USB 3.0 ports on Back Panel I/O
      • 4 x USB 2.0 ports on Back Panel I/O
      • 4 x USB 2.0 ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard
    • 1 x PS/2 mouse
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

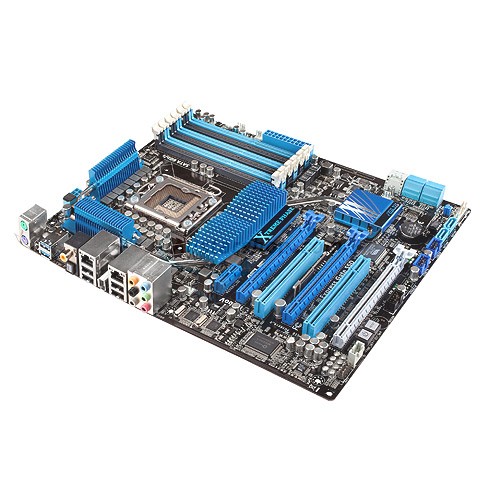

    • P6X58D Premium motherboard
    • 4 x SATA cables
    • 2 x SATA 6Gb/s cables
    • Asus Q-Connector Kit
    • I/O Shield
    • Asus SLI bridge
    • Asus 3-Way SLI bridge
    • Asus motherboard support DVD
    • User Guide
