  1. Home
  2. Motherboards
  3. Intel - ATX/eATX - LGA1700
SKU: 800-51142N
  • Max 24GB / 6 x Dimm DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066
  • 2 x SAS, 6 x SATA, 2 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 12 x USB 2.0, 1 x IEEE 1394a
  • 4 x PCI-E 2.0 X16, 3 x PCI-E X16 (X8)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1366 socket:
    • Intel Core i7 Extreme
    • Intel Core i7
    • Intel Xeon E5502, 4, 6
    • Intel Xeon W3520, 40, 70
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel X58
  • Intel ICH10R
  • Nvidia NF200*2
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
6
Type of Memory Supported
240-pin DDR3 2000(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066 ECC,Non-ECC,Un-buffered Memory
Maximum RAM
24GB

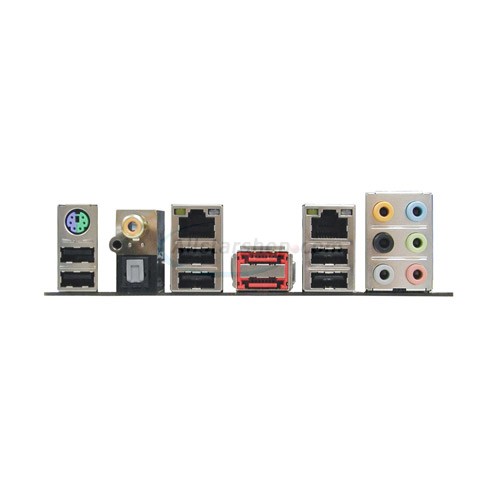

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x Coaxial + Optical S/PDIF Out
  • 2 x eSATA
  • 6 x USB 2.0 ports
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O
    Number of PCI/PCI-Express Slots
    • 4 x PCI-Express 2.0 X16 (Blue)
    • 3 x PCI-Express 2.0 X16 (X8) (Black)
    On-Board EIDE/Floppy
    No
    Integrated SATA/SAS
      Intel ICH10R:
      • 6 x SATA II 3.0Gb/s
      Marvell 88SE6320:
      • 2 x SAS
      Marvell 88SE6121:
      • 2 x eSATA
    Integrated SATA/SAS RAID
      Intel ICH10R:
      • Supports RAID 0, 1, 5 and 10
      Marvell 88SE6320:
      • Supports RAID 0 and 1
      Marvell 88SE6121:
      • Supports RAID 0 and 1
    Integrated Audio
    ADI AD2000B 8-channel (7.1) audio codec
    Integrated Video
    No
    Integrated LAN
    2 x Realtek 8111C PCIe Gigabit LAN controllers
    USB
      Up to 12 x USB ports:
      • 6 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
      Up to 1 x IEEE 1394 ports:
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard/Mouse Combo
    Form Factor
    ATX
    Dimensions
    12" x 10.5"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

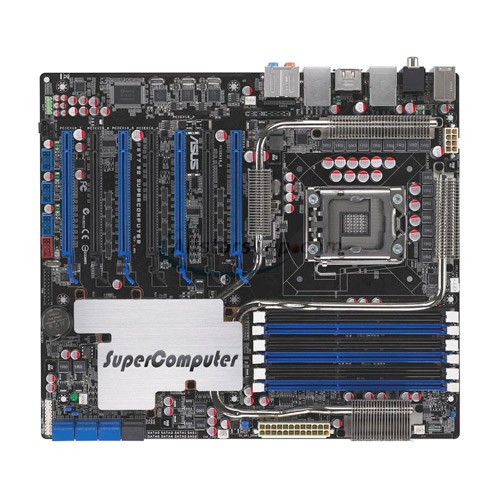

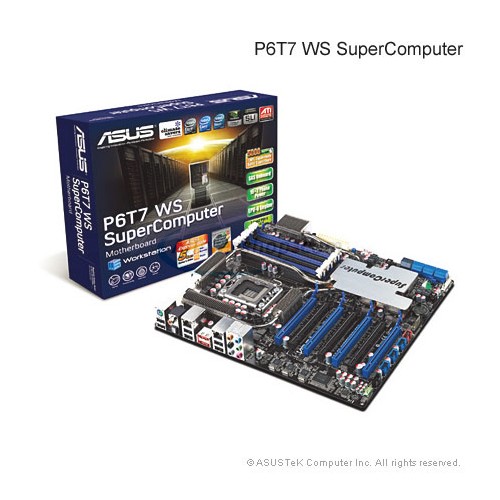

    • Asus P6T7 WS SuperComputer
    • 1 x 2-port USB 2.0 / 1-port IEEE 1394a module
    • 2 x SATA power cables
    • 6 x SATA cables
    • 2 x SAS+ power cables
    • 1 x Asus Q-Shield
    • 1 x Asus Q-Connector Kit
    • 1 x G.P. Diagnosis Card
    • 1 x Asus SLI bridge
    • 1 x Asus 3-Way SLI bridge card
    • Driver DVD
