SKU: 800-51142F
  • Max 24GB / 6 x Dimm DDR3 1600(OC)/1333/1066
  • 2 x SAS, 6 x SATA, 2 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 12 x USB 2.0
  • 3 x PCI-E 2.0 X16, 2 x PCI-E X16 (X8), 1 x PCI-E X16 (X4)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support

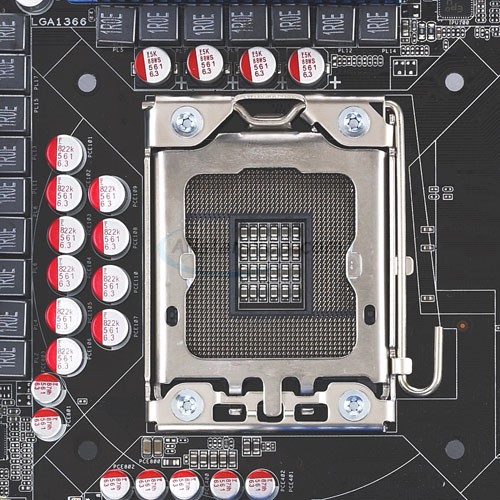

    LGA1366 socket:
    • Intel Core i7 Extreme
    • Intel Core i7
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel X58
  • Intel ICH10R
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
6
Type of Memory Supported
240-pin DDR3 1600(OC)/1333/1066 memory
Maximum RAM
24GB

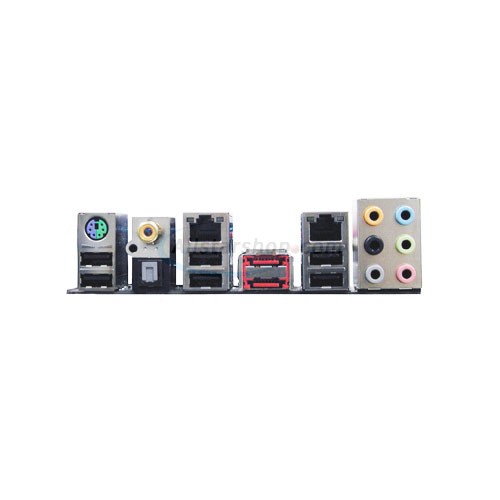

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 mouse
  • 1 x Coaxial + Optical S/PDIF Out
  • 2 x eSATA
  • 6 x USB 2.0 ports
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O

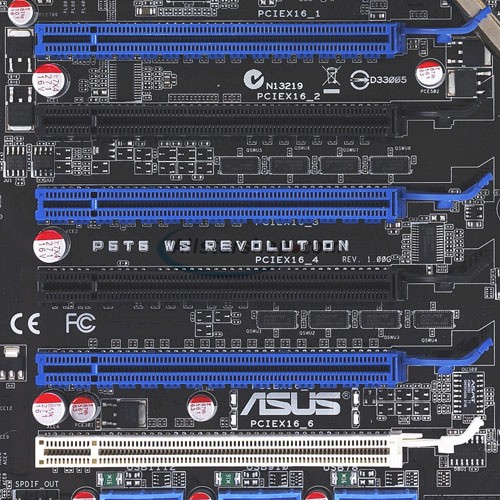

    Number of PCI/PCI-Express Slots
    • 2 x PCI-Express 2.0 X16 (Blue)
    • 1 x PCI-Express 2.0 X16 (Blue)
    • 2 x PCI-Express 2.0 X16 (X8) (Black)
    • 1 x PCI-Express 2.0 X16 (X4) (White)
    On-Board EIDE/Floppy
    No
    Integrated SATA/SAS
      Intel ICH10R:
      • 6 x SATA II 3.0Gb/s
      Marvell 88SE6320:
      • 2 x SAS
      Marvell 88SE6121:
      • 2 x eSATA
    Integrated SATA/SAS RAID
      Intel ICH10R:
      • Supports RAID 0, 1, 5 and 10
      Marvell 88SE6320:
      • Supports RAID 0, 1, and 10
      Marvell 88SE6121:
      • Supports RAID 0, 1, 5 and 10
    • A SAS expander (excluded in package) is required while using RAID 10 on SAS ports.
    • A port multiplier (excluded in package) is required while using RAID 5 or 10 on eSATA ports.
    Integrated Audio
    ADI AD2000B 8-channel (7.1) audio codec
    Integrated Video
    No
    Integrated LAN
    2 x Realtek 8111C PCIe Gigabit LAN controllers
    USB
      Up to 12 x USB ports:
      • 6 x USB ports on Back Panel I/O
      • 6 x USB ports via headers
    IEEE 1394
    No
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard
    • 1 x PS/2 mouse
    Form Factor
    ATX
    Dimensions
    12" x 9.6"
    Additional information
    • A SAS expander (excluded in package) is required while using RAID 10 on SAS ports.
    • A port multiplier (excluded in package) is required while using RAID 5 or 10 on eSATA ports.

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

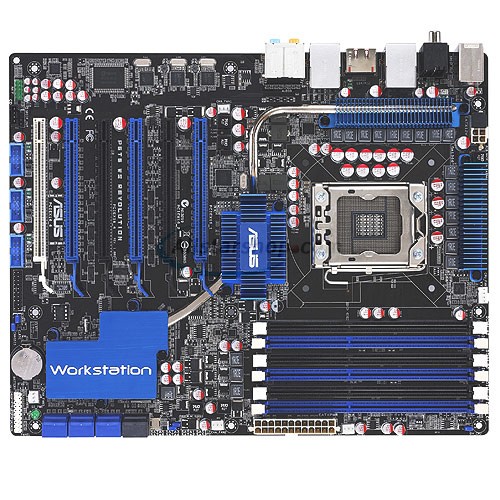

    • P6T6 WS Revolution motherboard
    • 1 x 2-port USB module
    • 6 x SATA cables
    • 2 x SATA power adapter
    • 2 x SAS cables
    • Asus Q-Connector Kit
    • I/O Shield
    • Asus SLI bridge
    • Asus 3-Way SLI bridge
    • Asus motherboard support DVD
    • User Guide
