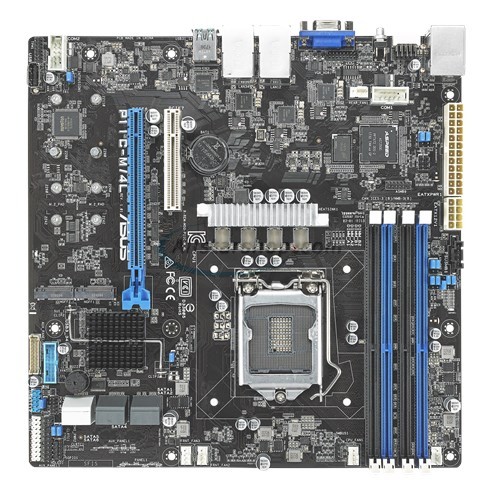

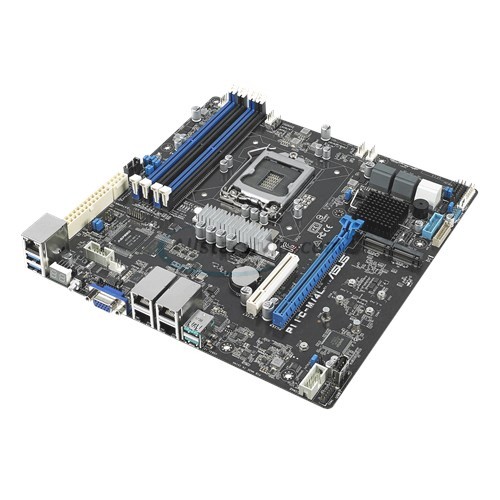

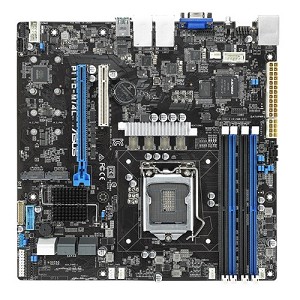

Asus P11C-M/4L C242 LGA1151 mATX motherboard

Asus P11C-M/4L C242 LGA1151 mATX motherboard - (Discontinued)

Support: (812)282-2787

Asus P11C-M/4L C242 LGA1151 mATX motherboard - (Discontinued)

SKU:	800-51171C

Integrated Graphics - VGA
Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
Up to 2x USB 3.1, 4x USB 3.0, 3x USB 2.0
1x PCIe X16, 1x PCIe X8

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston 8GB DDR4-2666 ECC CL19 SRx8 288-pin DIMM

The ASUS P11C-M/4L delivers always-on performance in micro ATX environments with features like ECC/non-ECC DDR4 UDIMM and quad Gigabit LAN. A rack-optimized design provides maximum cooling options while a common backplane design offers flexible NVMe storage options (M.2/U.2). ASUS Control Center delivers complete IT infrastructure management with cost-saving features.

Description

Specifications

CPU Support

LGA1151 socket for Intel Xeon E-2100 family, Intel 8th Gen Core i3, Pentium Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel C242 chipset

System Bios

AMI UEFI BIOS

Number of Memory Slots

Type of Memory Supported

288-pin DDR4 2666/2400 non ECC and with ECC UDIMM

Maximum RAM

64GB

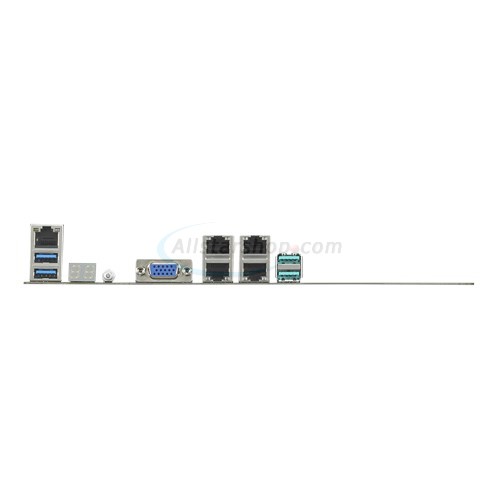

Back Panel I/O

2 x USB 3.1 Gen2 Type-A ports
2 x USB 3.0 (USB 3.1 Gen1) ports
1 x VGA
5 x RJ45 LAN
1 x Serial port

Number of PCI/PCI-Express Slots

1 x PCIe 3.0 x16
1 x PCIe 3.0 x8

Integrated SATA/SAS

6 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & x4 PCIe mode)

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Video

Aspeed AST2500

Integrated LAN

4 x Intel I210AT Gigabit LAN
1 x Mgmt LAN

USB

2 x USB 3.1 Gen2 Type-A ports on Back Panel I/O
2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
2 x USB 3.0 (USB 3.1 Gen1) ports via headers
2 x USB 2.0 ports via headers
1 x USB 2.0 port onboard

Serial/Parallel Ports

1 x Serial port on Back Panel I/O
1 x Serial port via header

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.

Package Contents

P11C-M/4L motherboard
User's manual
I/O Shield
Supporting CD
3 x SATA 6Gb/s cables

Compatible Accessories

Memory

Kingston 8GB DDR4-2666 ECC CL19 SRx8 288-pin UDIMM

PC4-21300
single-rank x8
Thermal Sensor on DIMM
ECC UDIMM
Micron E-Die

Manufacturer: Kingston

Mfg P/N: KSM26ES8/8MR

Availability: Usually ships with 1-2 business days
