Asus Maximus III Gene iP55 LGA1156 DDR3 microATX motherboard - (Discontinued)

Support: (812)282-2787

Asus Maximus III Gene iP55 LGA1156 DDR3 microATX motherboard - (Discontinued)

SKU:	800-51144M

Max 16GB / 4 x Dimm DDR3 2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066
7 x SATA, 1 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
Up to 14 x USB 2.0, 2 x IEEE 1394a
2 x PCI-E 2.0 X16, 1 x PCI-E X4 , 1 x PCI
Free Ground Shipping

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

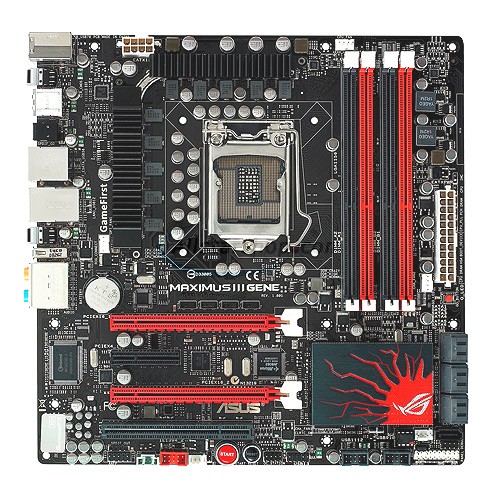

The ASUS Republic of Gamer (R.O.G.) series motherboard pioneers overclocking methods to enthusiasts. Maximus III Gene motherboard features Intel's P55 chipset supporting the LGA 1156 Core i5 & i7 processors. DDR3 Dual-channel Memory at speeds up to 2133MHz offer exceptional performance to gamers and enthusiasts. A revolutionary overclocking interface ROG Connect links notebooks and other PC’s via a specialized USB port, offering real-time system information display and adjustment for performance adjustments. ASUS GameFirst prioritizes and maximizes internet traffic for a smooth online game experience. SLI and Crossfire support enable fluid frame-rates at the highest game resolutions, while SupremeFX X-Fi onboard breathes life to gaming audio. ASUS’ Memory Rescue Features – MemOK and MemPerfect ensure memory stability and functionality with the simple push of a button.

Description

Specifications

CPU Support

Intel Core i7
Intel Core i5

Number of Processor (s)

Single (Not Included)

Chipset

Intel P55

System Bios

AMI BIOS

Video card slot

PCI-Express 2.0 X16

Number of Memory Slots

Type of Memory Supported

240-pin DDR3 2133(OC)/2000(OC)/1800(OC)/1600/1333/1066 Memory

Maximum RAM

16GB

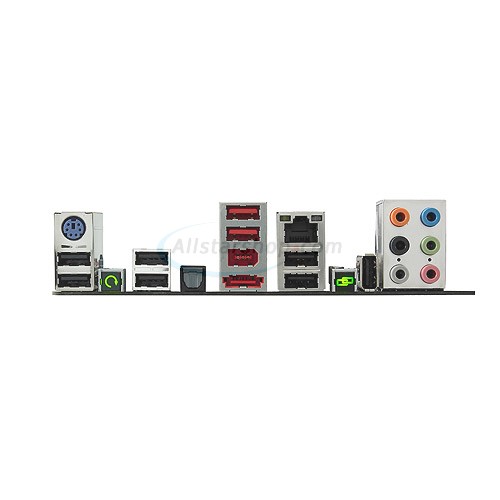

Back Panel I/O

1 x PS/2 Keyboard
1 x eSATA port
9 x USB 2.0 ports
1 x RJ45 LAN port
1 x IEEE 1394 port

Number of PCI/PCI-Express Slots

2 x PCI-Express X16:
- Single VGA: X16
- Dual VGA: X8, X8
1 x PCI-Express X4
1 x PCI

On-Board EIDE/Floppy

Integrated SATA/SAS

6 x SATA II 3.0Gb/s

1 x SATA 3.0Gb/s
1 x eSATA 3.0Gb/s

Integrated SATA/SAS RAID

Supports RAID 0, 1, 5 and 10

Integrated Audio

SupremeFX X-Fi discrete Audio Card
8-Channel High Definition Audio CODEC

Integrated Video

Integrated LAN

Gigabit LAN controller featuring AI NET2

USB

9 x USB ports on Back Panel I/O
5 x USB ports via headers

IEEE 1394

1 x IEEE 1394 port on Back Panel I/O
1 x IEEE 1394 port via header

Serial/Parallel Ports

PS/2 Ports

1 x PS/2 Keyboard

Form Factor

microATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
