SKU: 800-51144K
  • Max 16GB / 4 x Dimm DDR3 2133(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066
  • 10 x SATA, 1 x eSATA / RAID 0, 1, 10, 5 / 0 x IDE / 0 x FDD
  • Up to 14 x USB 2.0, 2 x IEEE 1394a
  • 2 x PCI-E 2.0 X16, 1 x PCI-E X16 (X4), 2 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    LGA1156 socket:
    • Intel Core i7
    • Intel Core i5
Number of Processor (s)
Single (Not Included)
Chipset
  • Intel P55
System Bios
AMI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2133(OC)/2000(OC)/1800(OC)/1600/1333/1066 Memory
Maximum RAM
16GB

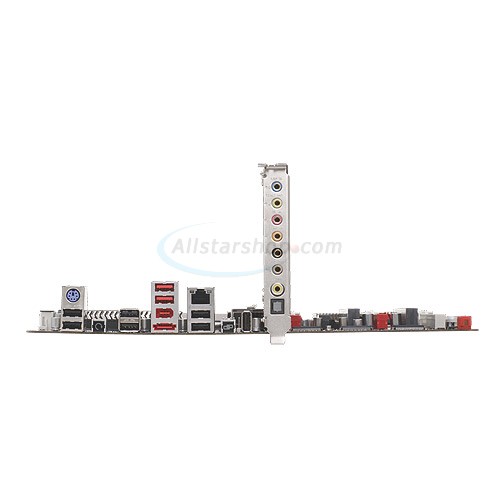

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x eSATA port
  • 9 x USB 2.0 ports
  • 1 x RJ45 LAN port
  • 1 x IEEE 1394 port
    Number of PCI/PCI-Express Slots
    • 3 x PCI-Express X16:
      • Single VGA: X16
      • Dual VGA: X8, X8
      • 1 x PCI-Express X16 (X4)
    • 2 x PCI-Express X1
    • 2 x PCI
    On-Board EIDE/Floppy
    No
    Integrated SATA/SAS
      Intel P55:
      • 6 x SATA II 3.0Gb/s
      Jmicron 322 & 2 x Jmicron 363:
      • 4 x SATA 3.0Gb/s
      • 1 x eSATA 3.0Gb/s
    Integrated SATA/SAS RAID
      Intel :
      • Supports RAID 0, 1, 5 and 10
    Integrated Audio
    • SupremeFX X-Fi discrete Audio Card
    • 8-Channel High Definition Audio CODEC
    Integrated Video
    No
    Integrated LAN
    Realtek RTL8110SC Gigabit LAN controller
    USB
      Up to 14 x USB ports:
      • 9 x USB ports on Back Panel I/O
      • 5 x USB ports via headers
    IEEE 1394
      Up to 2 x IEEE 1394 ports:
      • 1 x IEEE 1394 port on Back Panel I/O
      • 1 x IEEE 1394 port via header
    Serial/Parallel Ports
    No
    PS/2 Ports
    • 1 x PS/2 Keyboard
    Form Factor
    ATX
    Dimensions
    12" x 9.6"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

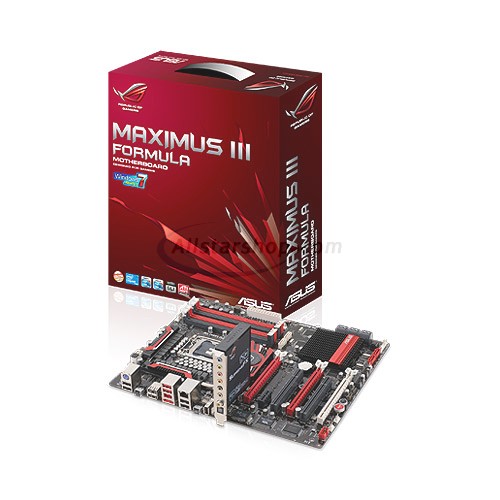

    Package Contents

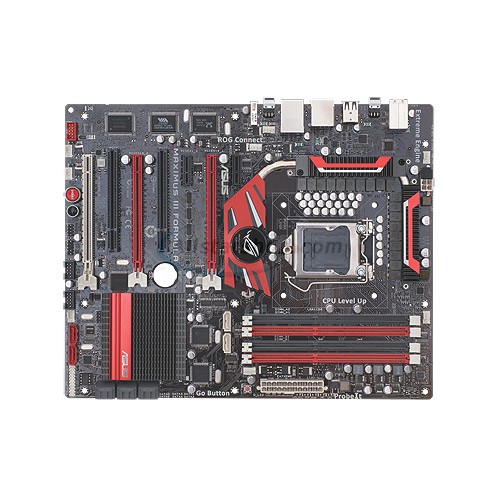

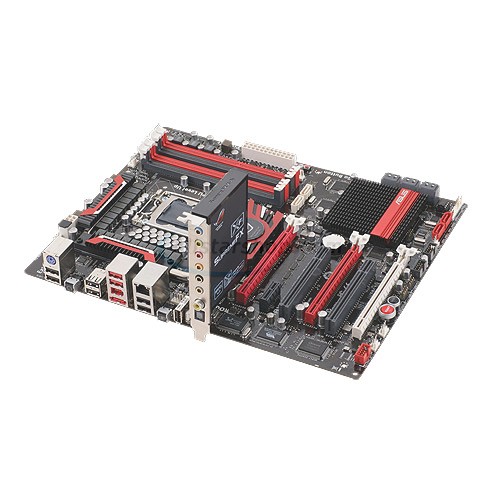

    • 1 x Maximus III Formula motherboard
    • 1 x SupremeFX X-Fi Audio Card
    • 1 x 2-in-1 ASUS Q-Connector Kit
    • 3 x 2-in-1 SATA signal cables
    • 1 x 2-port USB2.0 + ESATA module
    • 1 x ROG Connect Cable
    • 1 x ASUS SLI bridge connector
    • 2 in 1 Q-connector
    • ROG theme label
    • ASUS I/O Shield
    • User's manual
