SKU: 800-51174
  • Integrated Intel Graphics - DVI / HDMI / VGA
  • Max 32GB / 4 Dimm DDR3 1866/1600/1333
  • 8x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 6x USB 3.0, 7x USB 2.0
  • 3x PCIe X16, 3 x PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Socket 1150 for 4th and 5th generation Intel Core processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z97 chipset
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Maximum RAM
32GB
Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 4 x USB 3.0
  • 2 x USB 2.0
  • 1 x DVI
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x Optical S/PDIF out
  • 1 x Audio I/O
  • 1 x USB BIOS Flashback Button
Number of PCI/PCI-Express Slots
  • 2 x PCIe 3.0/2.0 x16 (1x16 or dual x8)
  • 1 x PCIe 2.0 x16 (max. x4)
  • 3 x PCIe 2.0 x1
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    Intel Z97:
    • 6 x SATA 6Gb/s
    ASM1061 controller:
    • 2 x SATA 6Gb/s
# of SATA Express Ports
No
# of M.2 Ports
1 x M.2 Socket
Integrated SATA/SAS RAID
RAID 0, 1, 5 and 10
Integrated Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Intel I218V Gigabit LAN
USB
    Up to 13 x USB ports:
    • 4 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 5 x USB 2.0 ports via headers
IEEE 1394
No
Serial/Parallel Ports
No
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

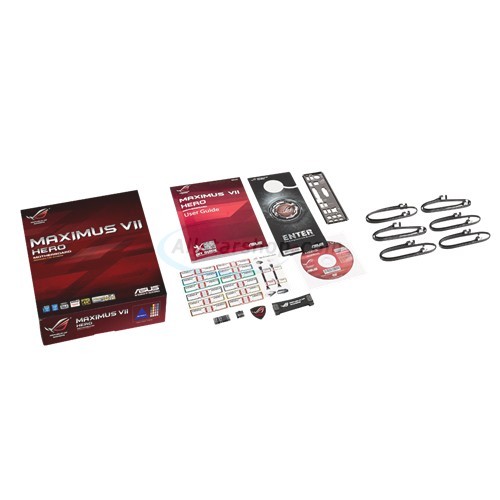

Package Contents

  • User's manual
  • ASUS Q-Shield
  • 6 x SATA 6Gb/s cables
  • 1 x SLI bridge
  • 1 x Q-connector (2 in 1)
  • 1 x 12 in 1 ROG Cable Label
  • 1 x ROG Door Hanger
