SKU: 800-51049A
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 32GB / 4 Dimm DDR3 1600/1333
  • 10x SATA 6Gb/s / RAID 0, 1, 10, 5
  • Up to 8x USB 3.0, 8x USB 2.0
  • 5x PCIe X16, 1x PCIe X4, 1x mini-PCIe X1
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Socket 1150 for 4th generation Intel Core processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z87 chipset
Video card slot
PCI-Express 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Maximum RAM
32 GB
Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo port
  • 6 x USB 3.0
  • 2 x USB 2.0 (one port can be switched to ROG Connect)
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 5 x PCI-Express 3.0/2.0 X16 (X16 or dual X8 or X8/X16/X8 or X8/X16/X8/X8)
  • 1 x PCI-Express 3.0 X4
  • 1 x mini-PCIe 2.0 X1
On-Board EIDE/Floppy
No
Integrated SATA/SAS
  • 6 x SATA 6Gb/s through the Intel Z87 Express
  • 4 x SATA 6Gb/s through the ASMedia ASM1061
Integrated SATA/SAS RAID
RAID 0, 1, 5 and 10
Integrated Audio
Realtek ALC1150 8-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics
Integrated LAN
Intel I217V Gigabit LAN Controller
USB
    Up to 16 x USB ports:
    • 6 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 6 x USB 2.0 ports via headers
IEEE 1394
No
Serial/Parallel Ports
No
PS/2 Ports
1 x PS/2 keyboard/mouse combo port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

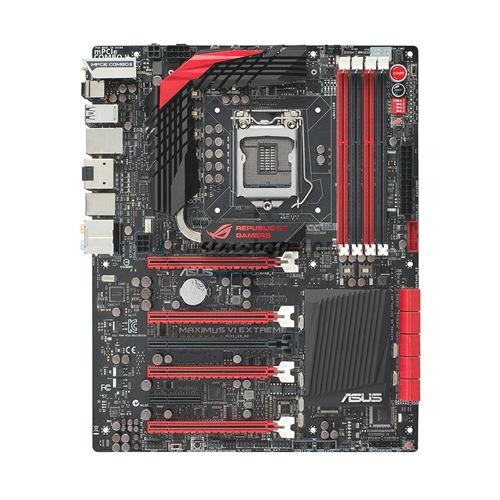

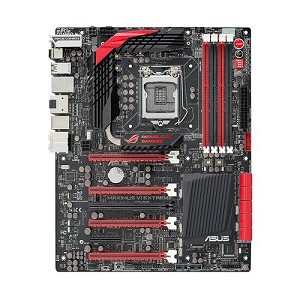

  • Asus MAXIMUS VI EXTREME motherboard
  • User's manual
  • I/O Shield
  • 10 x SATA 6Gb/s cable(s)
  • 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
  • 1 x 3-Way SLI bridge(s)
  • 1 x 4-Way SLI bridge(s)
  • 1 x SLI bridge(s)
  • 1 x CrossFire cable(s)
  • 1 x Q-connector(s) (2 in 1)
  • 1 x ROG Connect cable(s)
  • 1 x 12 in 1 ROG Cable Label(s)
  • 1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module
  • 1 x ROG Magnet
  • OC Panel Kit:
    • 1 x OC Panel
    • 1 x OC Panel 5.25-inch bay metal case
    • 1 x OC Panel Cable
