SKU: 800-51022M
  • Max 32GB / 4 x Dimm DDR3 1866/1600/1333/1066
  • 6x SATA 6Gb/s, 2x eSATA 6Gb/s / RAID 0, 1, 10, 5, 10
  • Up to 4x USB 3.0, 14x USB 2.0
  • 3x PCIe X16, 2x PCIe X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    Socket AM3:
    • AMD FX
    • AMD Phenom II
    • AMD Athlon II
    • AMD Sempron 100
Number of Processor (s)
Single (Not Included)
Chipset
  • AMD 990X
  • AMD SB950
System Bios
UEFI BIOS
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1866/1600/1333/1066 ECC, Non-ECC, Un-buffered Memory
Maximum RAM
32GB

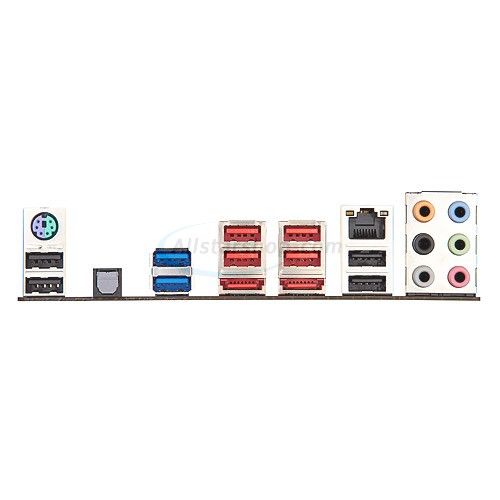

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x Optical S/PDIF Out
  • 2 x USB 3.0 ports
  • 8 x USB 2.0 ports
  • 2 x eSATA 6Gb/s
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 2 x PCI-Express 2.0 X16:
    • Dual: X8 / X8
  • 1 x PCI-Express 2.0 X4 using X16 slot
  • 2 x PCI-Express 2.0 X1
  • 1 x PCI
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    AMD SB950:
    • 6 x SATA 6Gb/s
    ASMedia PCIe SATA controller:
    • 2 x eSATA 6Gb/s
Integrated SATA/SAS RAID
    AMD SB950:
    • RAID 0, 1, 10 and 5
Integrated Audio
Realtek ALC 892 8-Channel High Definition Audio CODEC
Integrated Video
No
Integrated LAN
Realtek 8111E Gigabit LAN controller
Integrated SCSI
No
USB
    Up to 18 USB ports:
    • 2 x USB 3.0 ports on Back Panel
    • 2 x USB 3.0 ports via headers
    • 8 x USB 2.0 ports on Back Panel I/O
    • 6 x USB 2.0 ports via headers
eSATA
2 x eSATA 6Gb/s
IEEE 1394
No
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

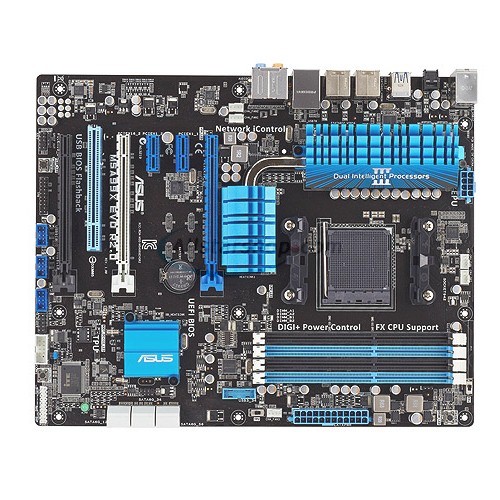

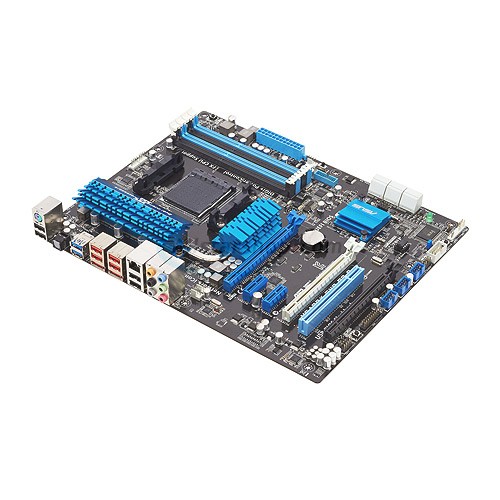

  • ASUS M5A99X EVO R2.0 ATX Motherboard
  • User's manual
  • I/O Shield
  • 4 x SATA 6Gb/s cables
  • 1 x SLI bridges
  • 1 x Q-connectors (2 in 1)
  • Drivers CD
