SKU: 800-51156A
  • Integrated NVIDIA ION Graphics - DVI-D / HDMI
  • Max 4GB / 2 x Dimm DDR3 1333/1066/800
  • 2 x SATA, 1 x eSATA / 0 x IDE / 0 x FDD
  • 1 x PCI-E X4
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Intel Atom D525
Number of Processor (s)
Single
Chipset
Intel NM10
System Bios
AMI BIOS
Video card slot
No
Number of Memory Slots
2
Type of Memory Supported
204-pin DDR3 1333/1066/800 Non-ECC,Un-buffered Memory
Maximum RAM
4GB

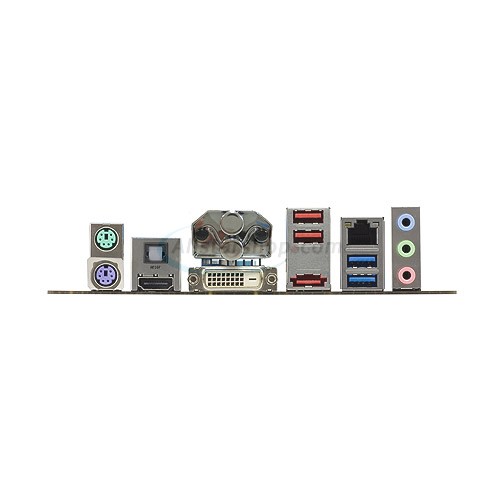

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x S/PDIF Out (Optical)
  • 1 x DVI
  • 1 x HDMI
  • 1 x External SATA
  • 2 x USB 2.0
  • 2 x USB 3.0 (compatible with USB 2.0 device)
  • 1 x LAN(RJ45) port
  • 1 x 6 -Channel Audio I/O
Number of PCI/PCI-Express Slots
1 x PCI-Express X4
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
No
On-Board IDE RAID
No
Integrated SATA/SAS
2 x SATA 3Gb/s
Integrated SATA/SAS RAID
No
Integrated Audio
ALC887 8-Channel support DTS Surround Sensation UltraPC
Integrated Video
NVIDIA ION graphics
Integrated LAN
PCIe Gb LAN
Integrated SCSI
No
USB
  • Up to 6 x USB:
    • 2 x USB 2.0 on Back Panel I/O
    • 2 x USB 3.0 (compatible with USB 2.0 device) on Back Panel I/O
    • 2 x USB ports via headers
IEEE 1394
No
Form Factor
mini-ITX
Dimensions
6.75" x 6.75"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

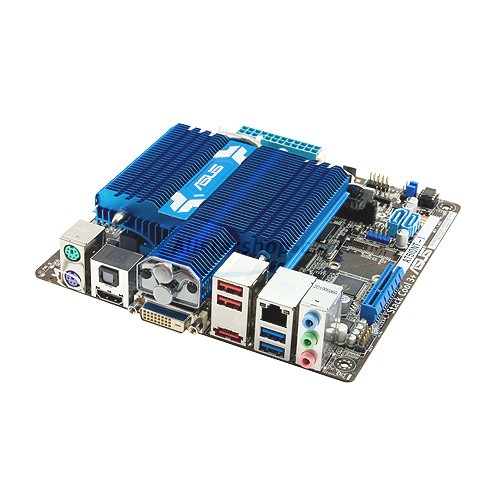

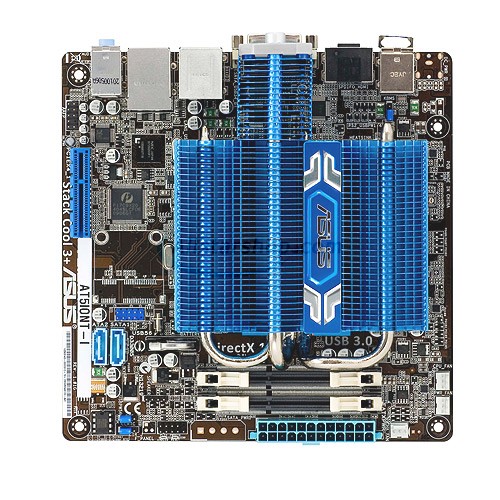

  • ASUS AT5IONT-I motherboard
  • User's manual
  • Driver CD
  • 1 x I/O Shield
  • 2 x SATA cables
