SKU: 800-26521A
  • Integrated Intel Graphics - DVI/ HDMI / DP / Thunderbolt
  • Max 32GB / 4 Dimm DDR3 1866/1600/1333
  • 1x SATAe, 8x SATA 6Gb/s, 1x eSATA, 1x Ultra M.2, 1x M.2
  • Up to 10x USB 3.0, 5x USB 2.0
  • 3x PCIe X16, 2 x PCIe X1, 1 x mini-PCIe
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
Socket 1150 for 4th and 5th generation Intel Core processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z97 chipset
System Bios
AMI UEFI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
Maximum RAM
32GB

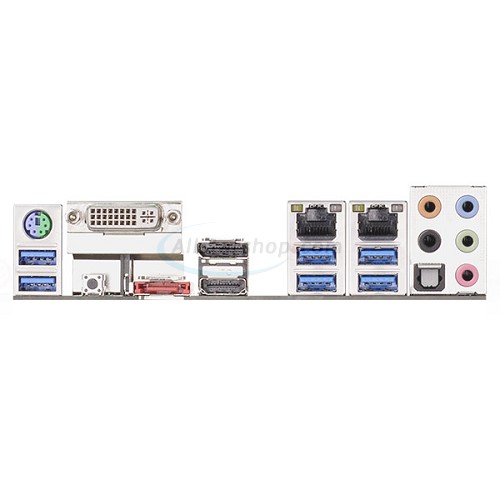

Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 6 x USB 3.0 Ports
  • 1 x DVI-I Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.2
  • 1 x Optical SPDIF Out Port
  • 1 x eSATA Connector
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 2 x PCIe 3.0/2.0 x16 (1x16 or dual x8)
  • 1 x PCIe 2.0 x16 (max. x4)
  • 2 x PCIe 2.0 x1
  • 1 x mini PCIe
On-Board EIDE/Floppy
No
Integrated SATA/SAS
    Intel Z97:
    • 6 x SATA 6Gb/s
    ASMedia ASM1061:
    • 4 x SATA 6Gb/s
    • 1 x eSATA
# of SATA Express Ports
1 x SATA Express compatible with 2 x SATA 6Gb/s
# of M.2 Ports
  • 1 x Ultra M.2
  • 1 x M.2
    Integrated SATA/SAS RAID
    RAID 0, 1, 5 and 10
    Integrated Audio
    Realtek ALC1150 8-Channel High Definition Audio CODEC
    Integrated Video
    Integrated Intel Graphics
    Integrated LAN
    • 1 x Intel I218V Gigabit LAN
    • 1 x Realtek RTL8111GR Gigabit LAN
    USB
      Up to 15 x USB ports:
      • 6 x USB 3.0 ports on Back Panel I/O
      • 4 x USB 3.0 ports via headers
      • 4 x USB 2.0 ports via headers
      • 1 x USB 2.0 Type A
    IEEE 1394
    No
    Serial/Parallel Ports
    1 x Serial port via header
    PS/2 Ports
    1 x PS/2 keyboard/mouse combo port
    Form Factor
    ATX

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 3 years
    • Warranty Provider: Asrock
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
    • Technical Support: Asrock (909) 590-8308

    Package Contents

    • User's manual
    • Quick Installation Guide
    • Support CD
    • I/O Shield

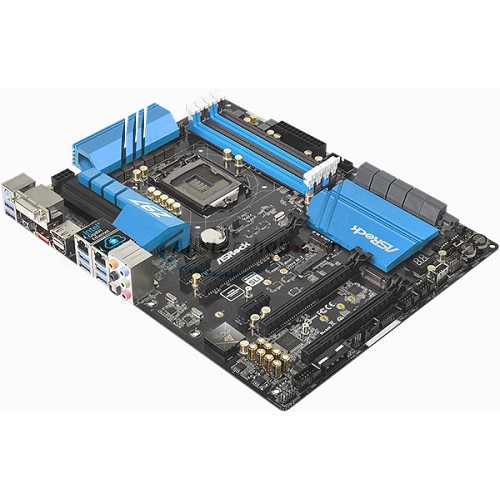

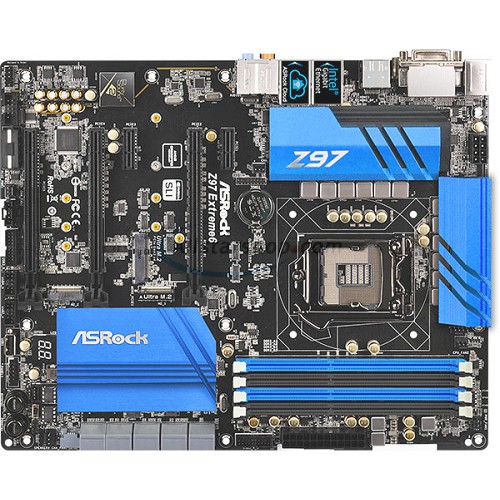

    • Asrock Z97 Extreme6
    • 4 x SATA 6Gb/s cables
    • 1 x HDD Saver Cable
    • 1 x ASRock SLI_Bridge_2S Card
