SKU: 800-26543F
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR5 DIMM / Up to 6400 (O.C.)
  • 6x SATA 6Gb/s, 4x M.2 / RAID 0, 1, 5, 10
  • 3x USB 3.2 G2 (2x USB-C), 10x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe x1
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z690 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4800 Non-ECC, Un-buffered Memory
Maximum RAM
128GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-A port
  • 1 x USB 3.2 Gen 2 Type-C port
  • 6 x USB 3.2 Gen 1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 2 x RJ45 LAN
  • 2 x Antenna port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (max x4)
  • 1 x PCIe 3.0 x16 (max x2)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2260/2280 support PCIe 3.0 x4 & SATA mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2260/2280 support PCIe 5.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC1220 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • Killer E3100G 2.5G Ethernet
  • Intel I219V Gigabit Ethernet
Integrated Wifi
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) & Bluetooth
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 1 x USB 3.2 Gen 2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen 2 Type-C port on Back Panel I/O
  • 6 x USB 3.2 Gen 1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen 1 Type-A ports via headers
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

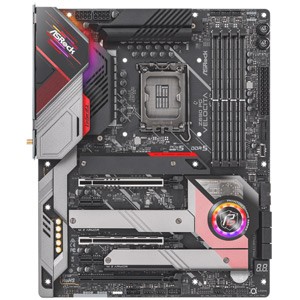

  • ASRock Z690 PG Velocita motherboard
  • User Guide
  • Support CD
  • 4 x SATA cable
  • 3 x M.2 Screws
  • 3 x Standoffs for M.2 Sockets
  • 1 x Graphics Card Holder
  • 1 x ASRock WiFi 2.4/5/6 GHz Antenna
  • Wireless Dongle USB Bracket
  • 1 x 3010 Cooling Fan with Bracket and Screw Package
  • 1 x 4010 Cooling Fan Bracket and Screw Package
