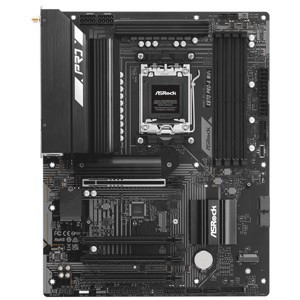

ASRock X870 Pro-A WiFi AMD X870 AM5 ATX Motherboard

Welcome to Allstarshop

This website uses cookies to provide you a personalized web experience. Using this website you agree to our use of cookies. If you require more information, please visit our Privacy Policy. Agree

ASRock X870 Pro-A WiFi AMD X870 AM5 ATX Motherboard

Support: (909) 590-8308

ASRock X870 Pro-A WiFi AMD X870 AM5 ATX Motherboard

SKU:	800-26556E

Integrated Radeon Graphics - HDMI, 2x USB-C 4.0
Max 256GB / 4x DDR5 DIMM / Up to 8000+ (O.C.)
4x SATA 6GB/s, 3x M.2 / RAID 0, 1, 10
Up to 2x USB4-C, 2x USB 3.2 G2, 5x USB 3.2 G1 (1x USB-C), 8x USB 2.0
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x16 (x1)

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 7 9800X3D 8-Core 4.7GHz /8MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9900X3D 12-Core 4.4GHz /12MB cache AM5 CPU (Retail)

: AMD Ryzen 9 9950X 16-Core 4.3GHz /16MB cache AM5 CPU (Retail)

Packed with a powerful 16+2+1 phase VRM design and an enlarged heatsink, X870 Pro-A WiFi is able to deliver uncompromised performance for various kinds of applications. PCIe Gen5 x4 M.2 slot with top and bottom side heatsinks are able to dissipate heat efficiently to ensure your high-speed storage device always works at its optimum. Premium features such as 802.11be WiFi 7 and dual USB 4.0 Type-C are also available on this motherboard, making X870 Pro-A WiFi the top choice for budget-friendly build.

Description

Specifications

CPU Support

AMD Ryzen 9000/ 8000/7000 series processors

Number of Processor (s)

Single (Not Included)

Chipset

AMD X870

System Bios

UEFI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 ECC/non-ECC, Un-buffered Memory

Maximum RAM

256GB

Back Panel I/O

2 x USB4 Type-C ports
2 x USB 3.2 Gen2 Type-A ports
1 x USB 3.2 Gen1 Type-A port
4 x USB 2.0
1 x HDMI
1 x RJ-45 LAN
1 x Audio I/O
2 x Antenna Ports

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 electrical)
2 x PCIe 4.0 x16 (x1 electrical)

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 with M key, type 2280 supports PCIe 5.0 x4 mode
1 x M.2 with M key, type 2280 supports PCIe 4.0 x4 mode
1 x M.2 with M key, type 2280 supports SATA & PCIe 3.0 x2 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC897 7.1 CH HD Audio Codec

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Dragon RTL8125BG 2.5Gb Ethernet

Integrated Wifi

802.11be 2x2 Wi-Fi 7 & Bluetooth 5.4

USB

2 x USB4 Type-C ports on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-A port on Back Panel I/O
4 x USB 3.2 Gen1 Type-A ports via headers
1 x USB 3.2 Gen1 Type-C port via header
4 x USB 2.0 on Back Panel I/O
4 x USB 2.0 via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
