SKU: 800-26507E
  • Max 64GB / 4x DDR4 DIMM / Up to 3466+(O.C.)
  • 8x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 10
  • Up to 3x USB 3.1 (1x USB-C), 10x USB 3.1 Gen1, 3x USB 3.1 Gen2
  • 2x PCIe 3.0 X16, 1x PCIe 2.0 X16, 2x PCIe X1
Our Price: $274.95
List Price: $330.95 You save: $56.00
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
AMD AM4 Socket AMD Ryzen Series CPUs (Summit Ridge, Raven Ridge, and Pinnacle Ridge)
Number of Processor (s)
Single (Not Included)
Chipset
AMD X470
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
  • AMD Ryzen: 288-pin DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory
  • AMD 7th Gen A-Series APUs: 2400/2133 ECC & non-ECC, un-buffered memory
Maximum RAM
64GB

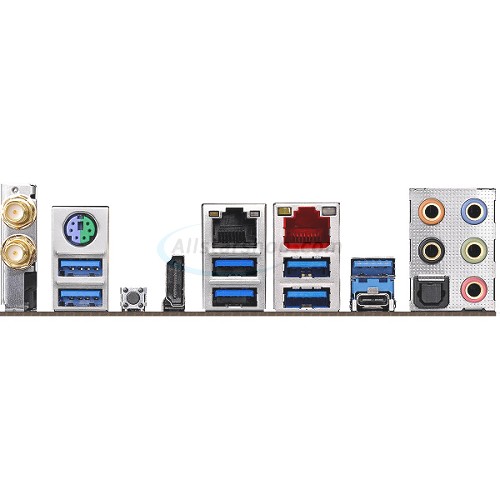

Back Panel I/O
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x USB 3.1 Gen2 Type-A port
  • 1 x USB 3.1 Gen2 Type-C port
  • 6 x USB 3.0 (USB 3.1 Gen1) ports
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x Audio I/O
  • 2 x Antenna Ports
Number of PCI/PCI-Express Slots
    AMD Ryzen Processors (Summit Ridge and Pinnacle Ridge):
    • 2 x PCIe 3.0 x16 (x16 or dual x8)
    AMD Ryzen series CPUs (Raven Ridge):
    • 2 x PCIe 3.0 x16
    • 1 x PCIe 2.0 X16
    • 2 x PCIe 2.0 x1
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 Socket 3, with M key, type 2230/2242/2260/2280/22110 storage devices support SATA & PCIe up to 3.0 x 4
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support SATA & PCIe up to 2.0 x 4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1220 8-Channel High Definition Audio
Integrated Video
Integrated Graphics FROM Processor (Actual support may vary by CPU)
Integrated LAN
  • 1 x 10 Gigabit LAN Aquanitia AQC107
  • 1 x Intel Gigabit LAN Intel I211AT
  • Intel 802.11ac WiFi Module
  • Bluetooth 4.2 / 3.0 +
USB
    Up to 14 x USB ports:
    • 1 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 1 x USB 3.1 Gen2 via header
    • 6 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 4 x USB 3.0 (USB 3.1 Gen1) ports via headers
PS/2 Ports
1 x PS/2 Mouse/Keyboard Port
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

  • X470 Taichi Ultimate motherboard
  • User's manual
  • 1 x Supporting CD
  • I/O Shield
  • 4 x SATA 6Gb/s cables
  • 2 x M.2 Screw
  • 1 x SLI HB BRIDGE
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
