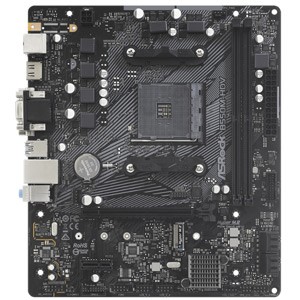

ASRock B550M-HDV AMD B550 Socket AM4 mATX Motherboard

Support: (909) 590-8308

ASRock B550M-HDV AMD B550 Socket AM4 mATX Motherboard

SKU:	800-26506F

Max 64GB / 2x DDR4 DIMM / Up to 4733+(O.C.)
4x SATA 6GB/s, 1x M.2 / RAID 0, 1, 10
Up to 6x USB 3.2 G1, 6x USB 2.0
1x PCIe x16, 1x PCIe x1

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD Ryzen 5 5600X 6-Core 3.7GHz /3MB cache AM4 CPU (Retail)

: AMD Ryzen 7 5800X 8-Core 3.8GHz /4MB cache AM4 CPU (Retail)

: Crucial 16GB DDR4-3200 PC4-25600 CL22 288-pin DIMM

With 6 Power Phase Design, ASRock B550M-HDV featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Description

Specifications

CPU Support

AMD AM4 Socket for AMD Ryzen 5000 Series / 3000 Series
Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G

Number of Processor (s)

Single (Not Included)

Chipset

AMD B550

System Bios

AMI UEFI BIOS

Video card slot

PCIe 4.0/3.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

Maximum RAM

64GB

Back Panel I/O

1 x PS/2 Mouse/Keyboard
4 x USB 3.2 Gen1 ports
2 x USB 2.0 ports
1 x VGA
1 x DVI-D
1 x HDMI
1 x RJ-45 LAN
1 x Audio

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket 3, with M key, type 2242/2260/2280 storage devices support SATA & PCIe 4.0 x4 mode

Integrated SATA/SAS RAID

RAID 0, 1, 10

Integrated Audio

Realtek ALC887 7.1 CH HD Audio Codec

Integrated Video

Integrated Graphics from processor (Actual support may vary by CPU)

Integrated LAN

Realtek RTL8111H Gigabit LAN

USB

4 x USB 3.2 Gen1 ports on Back Panel I/O
2 x USB 3.2 Gen1 ports via header
2 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

Serial/Parallel Ports

1 x Serial port via header

PS/2 Ports

1 x PS/2 Mouse/Keyboard

Form Factor

Micro ATX

Dimensions

9.0" x 7.9"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
