SKU: 800-26557A
  • Integrated Intel Graphics - HDMI / DP
  • Max 64GB / 2x DDR4 DIMM / Up to 2933
  • 4x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 6x USB 3.2 G1, 2x USB 2.0
  • 1x PCIe x16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
LGA1200 socket for 10th Generation Intel Core i9 / i7/ i5/ i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B460 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
2
Type of Memory Supported
DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum RAM
64GB
Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 4 x USB 3.2 Gen1 ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ-45 LAN
  • 2 x Antenna ports
Number of PCI/PCI-Express Slots
1 x PCIe 3.0 x16
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
1 x M.2 socket 3, with M key, type 2280 storage devices support SATA & PCIe 3.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel I219V Gigabit LAN
Integrated Wifi
Intel 802.11ac WiFi Module
USB
  • 4 x USB 3.2 Gen1 ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 ports via header
  • 2 x USB 2.0 ports via header
PS/2 Ports
1 x PS/2 Keyboard/Mouse
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308

Package Contents

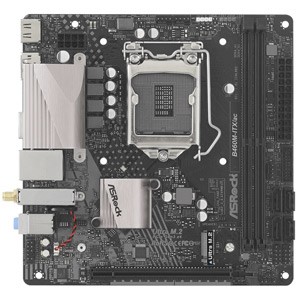

  • ASRock B460M-ITX/ac motherboard
  • Quick Installation Guide,
  • Support CD,
  • I/O Shield
  • 2 x SATA cables
  • 2 x ASRock WiFi 2.4/5 GHz Antennas
  • 1 x Screw for M.2 Socket<.ul>
