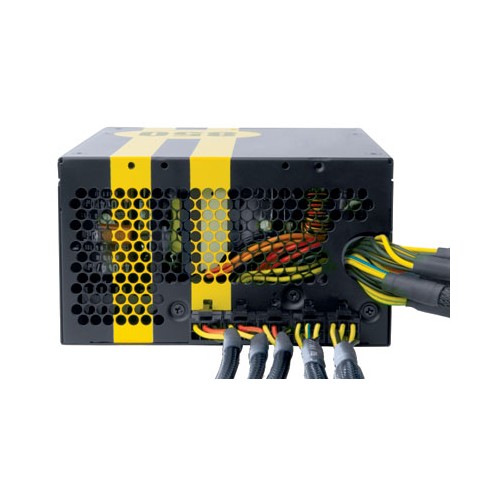

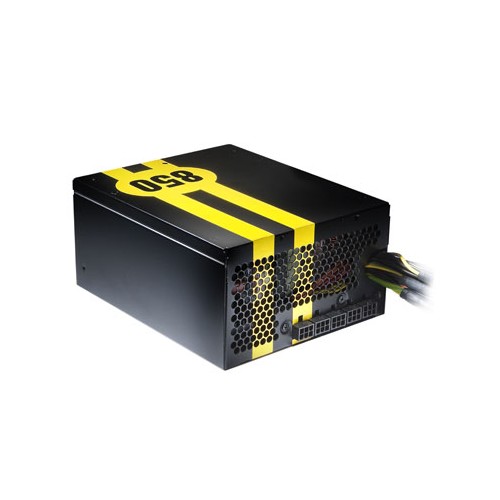

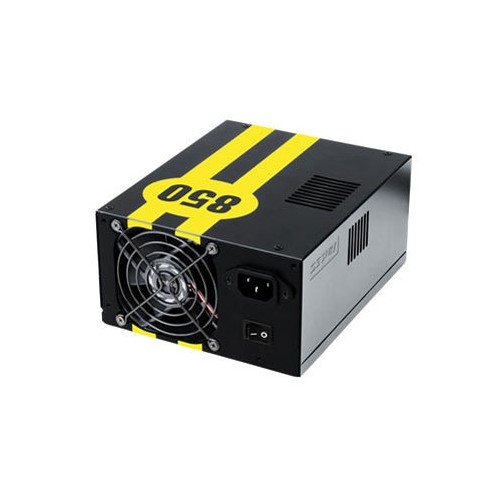

Quattro Series from Antec. Universal Input, automatically adjusts for 100V to 240V power grids PFC Supports ATX12V v2.2 and EPS12V v2.91 systems Four 12V output circuits 80mm low noise cooling fan 2 x 8-pin PCI-E connectors and 2 x 6-pin connectors for PCI-Express graphics cards MTBF: 100,000 hours Safety approvals: UL, CUL, FCC, T V, CE, C-tick, CCC, CB Antec Quality.

• Universal Input, automatically adjusts for 100V to 240V power grids


• Designed to meet the 80PLUS® Certification


• Active Power Factor Correction (PFC) helps reduce electrical waste


• Supports EPS12V v2.91 and ATX12V systems


• Four 12V output circuits provide supreme system stability


• Accurate power rating allows TruePower Quattro to deliver its full rated power (24 hours a day rated at 50ºC)


• Up to 85% efficient


• 80mm low noise cooling fan


• Heavy duty protection circuitry prevents damage resulting from short circuits (SCP), over voltages (OVP), under voltages (UVP), and over current (OCP)


• 2 x 8-pin PCI-E connectors and 2 x 6-pin connectors for PCI-Express graphics cards


• MTBF: 100,000 hours


• Safety approvals: UL, CUL, FCC, TÜV, CE, C-tick, CCC, CB


• Gold plated connectors for superior conductivity


• AQ5 – Antec Quality five-year parts and labor warranty


• Dimensions: 5.9" (W) x 3.4" (H) x 7.1" (D)
  15cm (W) x 8.6cm (H) x 18cm (D)

Output Connectors

20+4-pin Main Power x 1

4-pin Peripheral x 9	4-pin Floppy x 2	SATA x 8	4-pin 12V x 1	6-pin Aux x 1
6-pin PCI-Express x 2	8-pin EPS12V x 1	8-pin PCI-Express x 2
