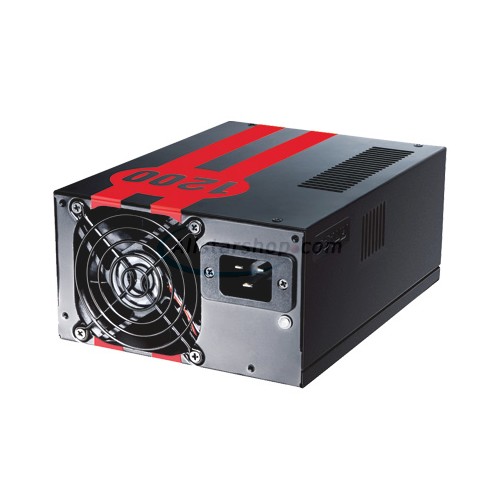

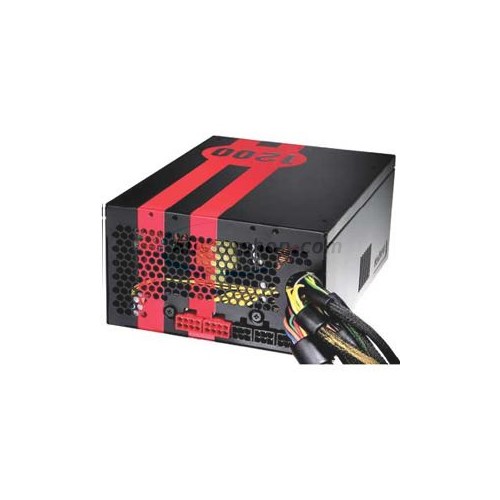

Combining 1200 watts of stable and quiet power with cutting-edge efficiency and style, the TruePower Quattro 1200 blasts ahead of the competition. Six +12V rails deliver unbeatably stable power that earns the rare 80 PLUS® Silver distinction, the highest independently certified standard in energy efficiency. Factor in the ultra-quiet Pulse Width Modulation fan, advanced cable management and the stylish racing stripe paint job, and the TruePower Quattro 1200 leaves every other power supply in the dust.

• Universal Input, automatically adjusts for 100V to 240V power grids


• Designed to meet the 80PLUS® Certification


• Active Power Factor Correction (PFC) helps reduce electrical waste


• Supports EPS12V v2.91 and ATX12V systems


• Four 12V output circuits provide supreme system stability


• Accurate power rating allows TruePower Quattro to deliver its full rated power (24 hours a day rated at 50ºC)


• Up to 85% efficient


• 80mm low noise cooling fan


• Heavy duty protection circuitry prevents damage resulting from short circuits (SCP), over voltages (OVP), under voltages (UVP), and over current (OCP)


• 2 x 8-pin PCI-E connectors and 2 x 6-pin connectors for PCI-Express graphics cards


• MTBF: 100,000 hours


• Safety approvals: UL, CUL, FCC, TÜV, CE, C-tick, CCC, CB


• Gold plated connectors for superior conductivity


• AQ5 – Antec Quality five-year parts and labor warranty


• Dimensions: 5.9" (W) x 3.4" (H) x 7.1" (D)
  15cm (W) x 8.6cm (H) x 18cm (D)

Output Connectors

20+4-pin Main Power x 1

4-pin Peripheral x 9	4-pin Floppy x 2	SATA x 8	4-pin 12V x 1	6-pin Aux x 1
6-pin PCI-Express x 2	8-pin EPS12V x 1	8-pin PCI-Express x 2
