SKU: 992-16157
  • Up to 92% efficiency / 80 PLUS Gold certified
  • 2 x +12V rails
  • 4 x 6+2-pin PCI-E
  • MTBF: 100,000 hours
  • ATX12V/EPS12V
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
Up to 92% Efficiency
MTBF
100,000 hours
Protection
  • Over Current Protection (OCP)
  • Over Voltage Protection (OVP)
  • Under Voltage Protection (UVP)
  • Short Circuit Protection (SCP)
  • Over Power Protection (OPP)
  • Over Temperature Protection (OTP)
  • Surge & Inrush Protection (SIP)
  • No Load Operation (NLO)
Version Support
ATX12V/EPS12V
Frequency
47Hz-63Hz
Input Voltage
100VAC-240VAC
Connectors
Output Connectors
20+4-pin Main Power x 14-pin 12V x 14-pin+4 12V x 1


SATA x 6

4-pin Peripheral x 5

4-pin Floppy x 1

8-pin (6+2)pin PCI-E x 4

Certifications & Standards
80 PLUS Gold

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

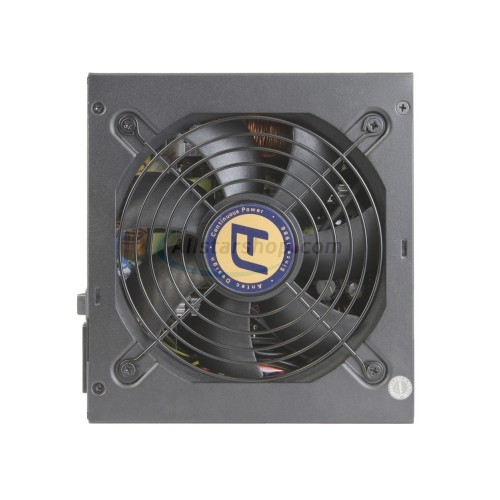

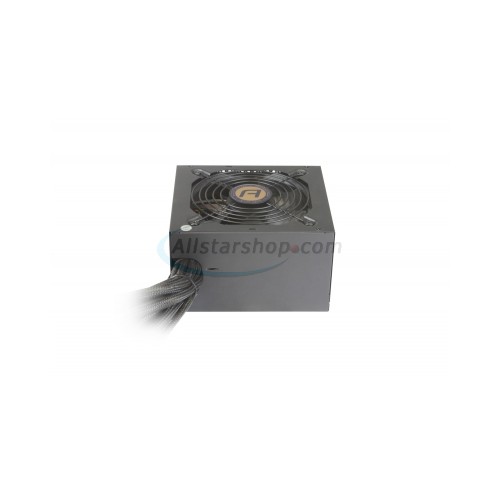

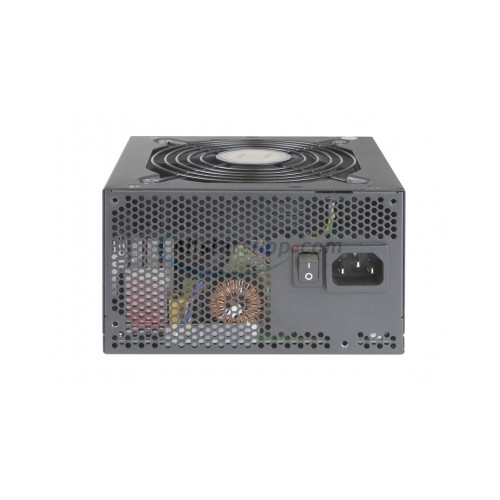

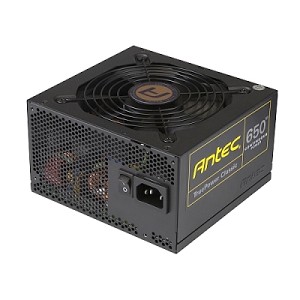

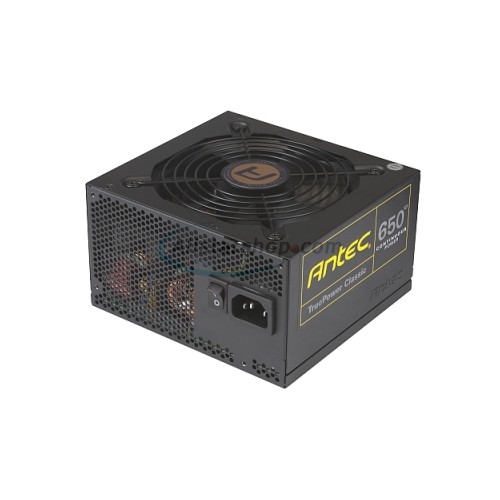

  • Antec TruePower Classic TP-650C 650W PSU
