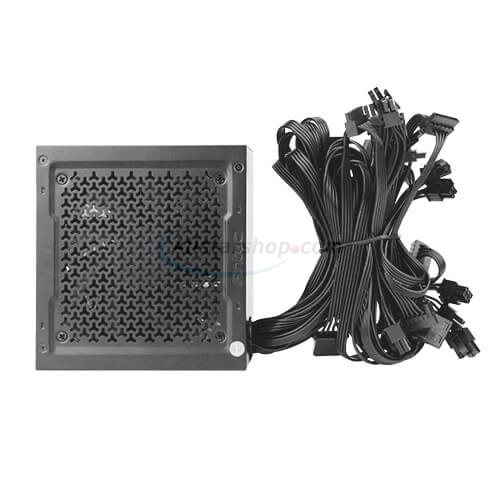

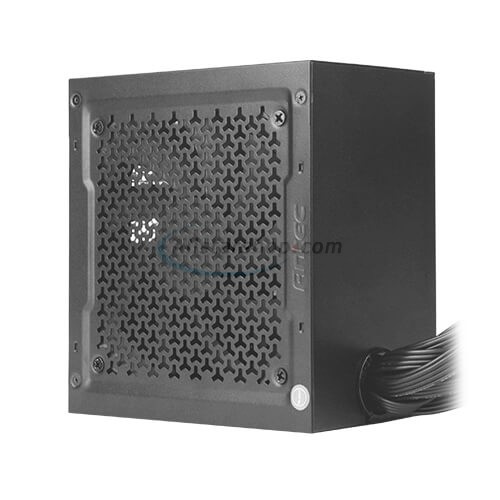

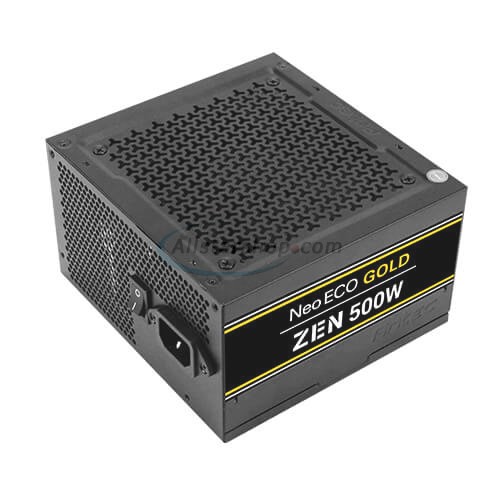

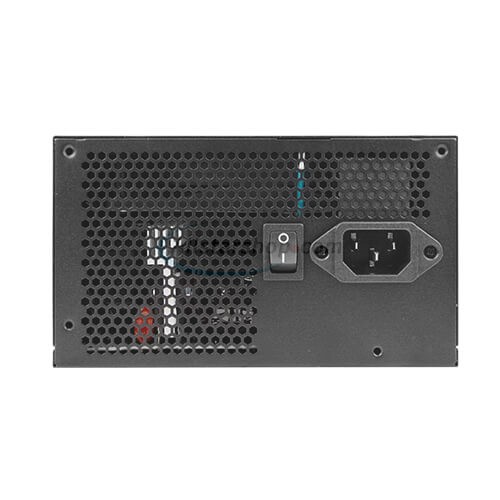

Antec NE500G ZEN NeoECO Gold ZEN 500W ATX12V Power Supply

Antec NeoECO Gold ZEN 500W ATX12V Power Supply - (Discontinued)

Support: (800) 222-6832

Antec NeoECO Gold ZEN 500W ATX12V Power Supply - (Discontinued)

SKU:	992-16165C

Efficiency up to 92%
1 x +12V Rail
1x 8-pin 12V
2 x 6+2-pin PCI-E

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Seagate FireCuda 530R NVMe PCIe Gen4 M.2 SSD - 2TB

: Seagate FireCuda 530R NVMe PCIe Gen4 M.2 SSD - 4TB

: LG 27" 27BA560-B IPS FHD Monitor with Built-in Speakers

The Antec NeoECO Gold ZEN series features high performance with an 80 PLUS Gold rating, achieving up to 92% efficiency and gives you savings unheard of from other power supplies. Featuring a 120mm whisper-quiet high-quality fan and CircuitShield™ Industrial Grade Protection-all backed up by our 5-year Antec Quality Warranty, NeoECO Gold ZEN series offers a highly efficient, affordable power solution.

120 mm Silent Fan
Features a Thermal Manager, an advanced low voltage fan control for optimal heat & noise management and will allow your PSU to stay at an optimal temperature.

Output Connectors

24-pin Main Power x 1	4-pin+4 12V x 1


SATA x 6	4-pin Peripheral x 2	8-pin (6+2)pin PCI-E x 2

Description

24-pin Main Power x 1	4-pin+4 12V x 1


SATA x 6	4-pin Peripheral x 2	8-pin (6+2)pin PCI-E x 2

Specifications

Efficiency

Up to 92%

Fans

1 x 120mm

Protection

OCP/OVP/UVP/SCP/OPP/NLO

Version Support

ATX-12V 2.4

Current

6A-3A

Frequency

50Hz-60Hz

Output Power

500W

Output Voltage

Output Voltage	Output Current
+3.3V	18A
+5V	18A
+12V1	42A
-12V	0.3A
+5Vsb	2.5A

Input Voltage

100-240 VAC

Connectors

1 x 24-Pin Main Power
1 x 4+4-pin ATX12V
2x 6+2-pin PCI-E
2 x Molex
6 x SATA

Dimensions

140(L) x 150(W) x 86(H) mm

Certifications & Standards

80 PLUS Gold

cTUVus/TUV/CB/RCM/CE/CCC/BSMI/FCC/KC

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 5 years
Warranty Provider: Antec
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Antec at (800) 222-6832 Or visit Antec customer service online.
Technical Support: Antec (800) 222-6832 or visit Antec technical support online.

Package Contents

Power Supply
Power Cord
