Antec High Current Gamer 850 Extreme 850W PSU - (Discontinued)

Support: (800) 222-6832

Antec High Current Gamer 850 Extreme 850W PSU - (Discontinued)

SKU:	992-16154B

Up to 92% efficiency / 80 PLUS Gold / ATX12V 2.4
2x +12V Rails
6 x 6+2-pin PCI-E connectors

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Seagate FireCuda 530R NVMe PCIe Gen4 M.2 SSD - 2TB

: Seagate FireCuda 530R NVMe PCIe Gen4 M.2 SSD - 4TB

: LG 27" 27BA560-B IPS FHD Monitor with Built-in Speakers

Engineered to meet the power demands of high-end systems, the Antec High Current Gamer Extreme power supply series boasts unparalleled stability and 80 PLUS Gold-certified efficiency, thanks to the top-grade Japanese capacitors and Active PFC.

Output Connectors

24-pin Main Power x 1	20+4-pin Main Power x 1	4-pin+4 12V x 2


SATA x 10	4-pin Peripheral x 6	4-pin Floppy x 1	8-pin (6+2)pin PCI-E x 6

Description

24-pin Main Power x 1	20+4-pin Main Power x 1	4-pin+4 12V x 2


SATA x 10	4-pin Peripheral x 6	4-pin Floppy x 1	8-pin (6+2)pin PCI-E x 6

Specifications

Efficiency

Up to 92%

Fans

1 x 135mm

Protection

OCP, OVP, UVP, SCP, OPP, OTP, SIP

Version Support

ATX 12V 2.4

Current

12A-6A

Frequency

50Hz - 60Hz, 12A - 6A

Output Power

850W

Output Voltage

Output Voltage	Output Current
+3.3V	20A
+5V	20A
+12V1	70A
-12V	0.3A
+5Vsb	3A
+12V Combined	70A

Input Voltage

100VAC - 240VAC +/- 10%

Connectors

1x 24-pin main power

2x 8 (4+4)-pin ATX12V / EPS12V

6x 8 (6+2)-pin PCI-e

10x SATA

6x Molex

1x FDD

Dimensions

160mm(L) x 150mm(W) x 86mm(H)

Certifications & Standards

cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 7 years
Warranty Provider: Antec
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Antec at (800) 222-6832 Or visit Antec customer service online.
Technical Support: Antec (800) 222-6832 or visit Antec technical support online.

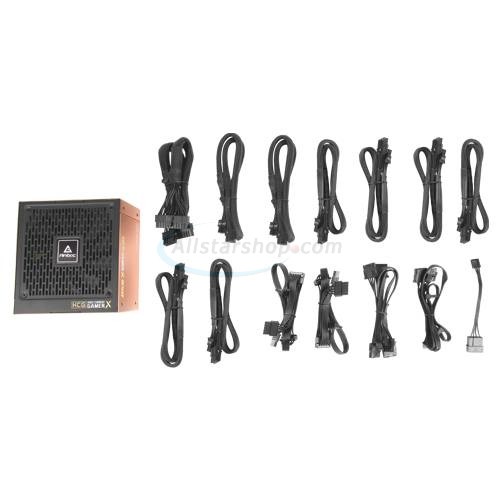

Package Contents

Power Supply Unit
Power Cord
Modular cables
