SKU: 992-16130
  • 70%+ efficiency
  • 2 x +12V rails
  • ATX12V 2.01
  • MTBF: 80,000 hours
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Efficiency
  • Minimum 70% @ Full-load
  • Typical 70%
  • Holdup Time
    17 ms Full-load
    MTBF
    80000 hours
    Protection
  • Overload
  • Short Circuit
  • Over Voltage
  • Version Support
    ATX 12V Ver. 2.01
    Current
  • 6A @ 115V AC - Input Current
  • 3A @ 230V AC - Input Current
  • 640A @ 115V AC - Inrush - Input Current
  • 100A @ 230V AC - Inrush - Input Current
  • 0.5A to 30A @ 3.3V DC - Output Current
  • 0.3A to 30A @ 5V DC - Output Current
  • 1A to 18A @ 12V DC - V1Output Current
  • 1A to 18A @ 12V DC - V2Output Current
  • 0A to 0.8A @ -12V DC - Output Current
  • 0A to 2.5A @ 5V DC - StandbyOutput Current
  • Frequency
    47 Hz to 63 Hz
    Output Power
    500 W
    Output Voltage
    Output VoltageMin. LoadMax. LoadRegulationNoise
    +3.3V0.5A30A+5,-5%50mV
    +5V0.3A30A+5,-5%50mV
    +12V11.0A18A+5,-5%120mV
    +12V21.0A18A+5,-5%120mV
    -12V0A0.3A+10,-10%120mV
    +5Vsb0A2.5A+5,-5%50mV
    Input Voltage
    100V AC to 240V AC ±10
    Interfaces/Ports
  • Power Rocker Switch
  • Logic On/Off Switch
  • Connectors
  • 2 x 5-pin SATA
  • 1 x 4-pin ATX12V
  • 5 x 4-pin peripheral
  • 1 x Floppy
  • 1 x 6-pin PCI-E
  • Compatibility

    Compliant:

  • ATX12V v2.01
  • Certifications & Standards
  • CE
  • UL
  • CB
  • CUL
  • TÜV
  • FCC Class B
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

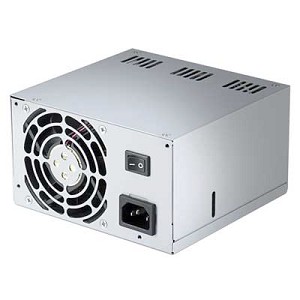

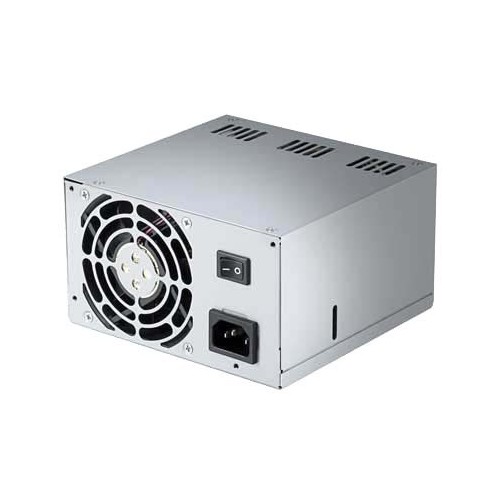

    • Antec Basiq BP500U 500W ATX12V PSU
