SKU: 250-18606
  • 4.69 Gbps data transfer rate
  • PCI Express 2.0 x1 interface
  • 2 x 7-pin Serial ATA/600 External SATA ports
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Technical Information
Host Interface
PCI Express 2.0 x1
Data Transfer Rate
4.69 Gbps
Drive Type
Serial ATA/600
Platform Support
PC
Interfaces/Ports
Ports
2 x 7-pin Serial ATA/600 External SATA
Physical Characteristics
Form Factor
Low-profile Plug-in Card
Dimensions
2.64" Height x 2.76" Width x 0.39" Thickness
Weight
1.20 oz
Miscellaneous
Green Compliance
Yes
Green Compliance Certificate/Authority
RoHS
Warranty
Standard Warranty
1 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Addonics
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Addonics at (408)453-6212
  • Technical Support: Addonics (408)453-6212

Package Contents

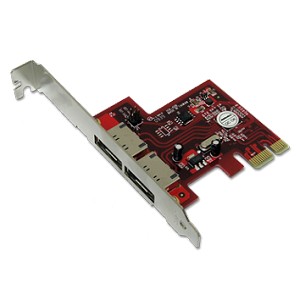

  • ADSA6GPX1-2E 2-port SATA PCI Express 2.0 x1 Controller

  • Low Profile Bracket

  • Driver CD

  • User Guide
