SKU: 540-34066B
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Display Type
KVM console / TFT active matrix
Diagonal Size
17"
Built-in Devices
16 port KVM switch
Native Resolution
1280 x 1024 at 75 Hz
Vertical Refresh Rate
75 Hz
Dimensions (WxDxH)
19 in x 27.9 in x 1.7 in
Weight
37.3 lbs
Input
Type
Keyboard, touchpad
KVM
Keyboard / Mouse Interface
PS/2
Max Resolution
1280 x 1024 @ 75 Hz
Connectivity
Interfaces
VGA
Keyboard ( PS/2 )
Mouse ( PS/2 )
16 x KVM ( RJ-45 )
Management ( DB-25 )
2 x USB
Miscellaneous
Compliant Standards
DDC-2B, RoHS
Power
Power Supply
Internal
Voltage Required
AC 120/230 V ( 50/60 Hz )
Power Consumption Operational
26.2 Watt
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 80% (non-condensing)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: ATEN
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact ATEN at (949) 428-1111
  • Technical Support: ATEN (888) 999-2836 or visit ATEN technical support online.

Package Contents

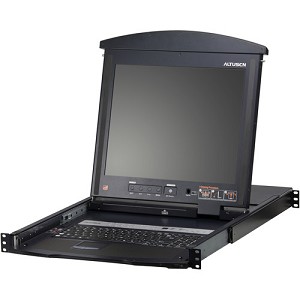

  • 1x 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 1x Power Cord
  • 1x User Manual
  • 1x Quick Start Guide
