AIC SSG-JBSA21-2123-A1 XJ3000-2123 2U SAS 6Gb 12-Bay DAS JBOD Hard Drive Array w/single expander

AIC SSG-JBSA21-2123-A1 XJ3000-2123 2U SAS 6Gb 12-Bay DAS JBOD Hard Drive Array w/single expander - (Discontinued)

Support: (909) 895-8989

AIC SSG-JBSA21-2123-A1 XJ3000-2123 2U SAS 6Gb 12-Bay DAS JBOD Hard Drive Array w/single expander - (Discontinued)

SKU:	990-22501B

Expander Chip: LSISAS2x28
Host Interface: Single Mini SAS 4x connector
Expansion Interface: Single Mini SAS 4x connector
500W 1+1 hot-swap redundant 80+ (Sliver)

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Kingston 32GB DDR5-5600 CL46 1Rx8 288-pin DIMM

: Solidigm D7-PS1010 3.84TB PCIe 5.0 x4 U.2 NVMe SSD

: Solidigm D7-PS1010 7.68TB PCIe 5.0 x4 U.2 NVMe SSD

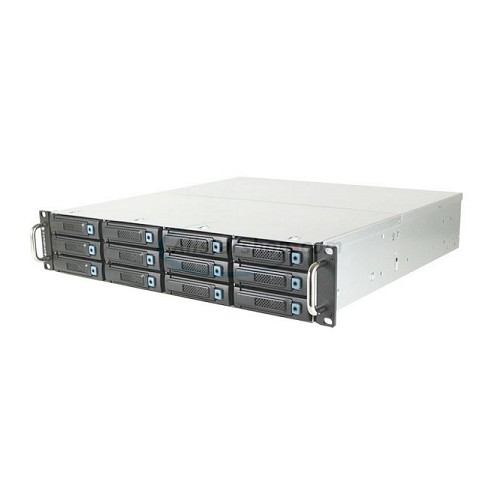

AIC XJ3000-2123 is a 2U 12-Bay 6G JBOD is ideal for high-availability storage and high performance appliance. This 2U 12bay enclosure supports two 6G expander modules for redundancy and 12x 6G (backplane support) SAS/SATA hard disk bays. It's the perfect appliance building-block for OEM/ODM and System Integrators.

Description

Specifications

Storage

Number of Hard Drives Supported

Number of Hard Drives Installed

Controllers

RAID Supported

Yes

RAID Levels

JBOD

I/O Expansions

Number of 3.5" Bays

Interfaces/Ports

Host Interface

Mini-SAS

Power Description

Input Voltage

110 V AC

220 V AC

Number of Power Supplies Installed

Maximum Power Supply Wattage

500 W

Redundant Power Supply

Yes

Physical Characteristics

Form Factor

Rack-mountable

Rack Height

Height

3.5"

Depth

17.7"

Miscellaneous

Compatibility

Areca 1880DIX-16 HBA

ATTO H680 HBA

ATTO R680 HBA

Intel RS2P1008 HBA

Intel RS2MB044 HBA

Intel SRCSASJV HBA

Intel SRCSAS114E HBA

LSI 9200-8e HBA

LSI SAS 3801E HBA

LSI 9280-8e HBA

LSI 9280DE-8e HBA

LSI SAS 9750-8e HBA

Promise STEX 8658 HBA

Green Compliant

Yes

Green Compliance Certificate/Authority

RoHS

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: AIC
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact AIC at (909) 895-8989 Or visit AIC customer service online.
Technical Support: AIC (909) 895-8989 or visit AIC technical support online.
