SKU: A320825
  • 12 x NEMA 5-15R
  • 8-ft power cord
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Technical Information
Plug/Connector Type
NEMA 5-15P
Receptacles
12 x NEMA 5-15R
Dataline Protection
  • RJ-11 Cable Modem/DSL/Fax/Phone
  • RJ-45 Coaxial Cable Line
  • Ethernet
  • Telecommunication
    • Protection Type
    • Surge
    • Noise
    • EMI/RFI
    Power Description
    Input Voltage
    120 V AC
    Current
    15 A Line Current/216 kA Surge Current
    Frequency
    60 Hz
    Power Handling
    1.80 kVA
    Surge Energy Rating
    2880 J
    Physical Characteristics
    Power Cord/Cable
    8 ft
    Height
    1.5"
    Depth
    10.3"
    Form Factor
    Wall Mountable
    Weight (Approximate)
    2.02 lb
    Miscellaneous
    Additional information
    • Built-in gold, Type F coax jacks prevent surges from damaging your cable/satellite equipment; digital broadband quality accommodates 2.2GHz
    • Can accommodate up to 4 transformers without blocking remaining outlets
    • Diagnostic LEDs indicate protection present & ground present
    • Audible alarm notifies user when the unit is damaged and needs to be replaced
    • Keyhole supports for wall mounting
    • Lighted power switch
    Green Compliant
    Yes
    Green Compliance Certificate/Authority
    RoHS
    Warranty
    Limited Warranty
    Lifetime

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

    Package Contents

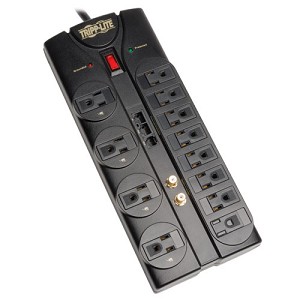

    • Protect It! TLP1208SAT 12 Outlets Surge Suppressor

    • 6-ft. Telephone Cord

    • 6-ft. Network Cable

    • 6-ft. Coax Cable

    • Instruction Manual with Warranty Information
