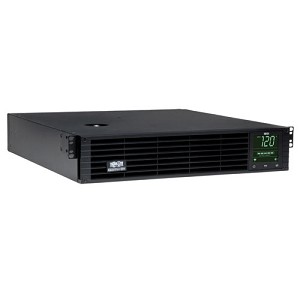

SKU: 995-12517B
  • 1920 W / 2200 VA
  • Full Load: 4.5 min. / Half Load: 12 min.
  • 1 x NEMA 5-20P Input / 4 x NEMA 5-15R / 4 x NEMA 5-15/20R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Plug/Connector Type
NEMA 5-20P
Receptacles
  • 4 x NEMA 5-15R
  • 4 x NEMA 5-20R
    • Switching Time
    4 ms
    Load Capacity
    2200VA/1600W
    Input Voltage
    110V AC
    Input Voltage Range
    120V AC Single-phase
    Output Voltage
    120V AC Single-phase
    Frequency
    60Hz
    Waveform Type
    Sine Wave
    Filtering
    EMI/RFI
    Network Management
    SNMP Manageable Optional
    Overload Protection
    Resettable circuit breaker
    Alarm
  • On Battery
  • Overload
  • Low Battery
    • Emergency Power OFF
    Yes
    Status Indicators
    5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
    Interfaces/Ports
  • 2 x USB
  • 2 x DB-9
    • Modular Slots
    1 x Communications Slot
    Batteries
    Sealed Lead-acid User-replaceable Hot-swappable
    Backup/Run Time
  • 8 Minute 2200VA Full-load
  • 20 Minute 1100VA Half-load
    • Battery Life
    3 Year to 6 Year
    Battery Recharge Time
    4 Hour
    Temperature
    32 °F (0 °C) to 104 °F (40 °C) Operating
    Humidity
    0 to 95% Non-condensing Relative Humidity
    Form Factor
    2U Rack-mountable
    Power Cord/Cable
    10 ft
    Shipping Dimensions
    9" Height x 23.5" Width x 20" Depth
    Shipping Weight
    72 lb
    Additional information
  • 2200VA / 1600 watt output power capacity compatible with North American 120V / 60Hz power
  • 2U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 19 inches
  • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
  • Line interactive Automatic Voltage Regulation (AVR) corrects inputs from 79-147VAC back to usable 120V levels without consuming battery power
  • Dual boost AVR circuits boost undervoltages by 14% or 24% depending on the severity and reduces overvoltages by 12%
  • Network interfaces support simultaneous communications via 2 USB, 2 DB9 serial and SNMPWEBCARD slot
  • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
  • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
  • Built in Emergency Power Off (EPO) interface with cable
  • Sine wave output in AC and battery modes
  • Expandable runtime with optional battery packs - BP48V24-2U (limit 1) and BP48V60RT-3U (multi-pack compatible)
  • Half load runtime of 20 minutes with internal batteries, Add 1 BP48V24-2U for 68 minutes or 1 BP48V60RT-3U for 147 minutes (1100VA / 800 watts)
  • Full load runtime of 8 minutes with standard internal batteries, Add 1 BP48V24-2U for 30 minutes or 1 BP48V60RT-3U for 66 minutes (2200VA / 1600 watts)
  • Includes 8 output receptacles arranged in 3 load banks (4 NEMA 5-15R / 4 NEMA 5-15/20R)
  • Ships with NEMA 5-20P input plug, user installable NEMA 5-15P replacement plug included to enable connection to common 15A receptacles
  • Integrated 3 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
  • 3 stage metered LEDs offer current monitoring and battery charge level
  • Mains power and voltage regulation LEDs offer at-a-glance power status information
  • Front panel switches support self-test and alarm cancel functions
  • Included UPSRMRII adjustable mounting rails support installation in 19 inch racks with a front-to-rear depth of 23.5 and 36.5 inches (add a 2nd UPSRMRII accessory to extend the reach to 35.25 to 49.5 inches)
  • UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required
  • Supports 2 post rackmount installation with optional 2POSTRMKIT accessory
  • Supports upright tower placement with optional 2-9USTAND accessory
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Emissions) listed
  • 2 year manufacturers product warranty, $250,000 Ultimate Lifetime Insurance
    • System Requirements
    TYPICAL APPLICATIONS: Ideal for protection of sensitive electronics in any application calling for upright tower or 19 inch rackmount UPS protection. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 2 years
    • Warranty Provider: Tripp Lite
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
    • Technical Support: Tripp Lite (773) 869-1234

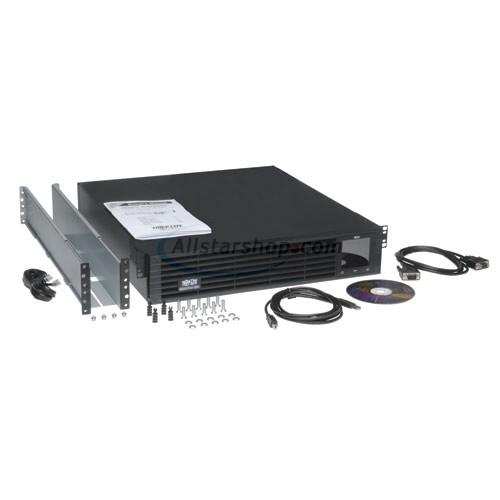

    Package Contents

    • SMART2200RMXL2U UPS System
    • PowerAlert Software and cabling
    • Mounting hardware for 4 post rackmount installation
    • Warranty information
    • Instruction manual
