SKU: 995-12538C
  • 1920 W / 2200 VA
  • Full Load: 4.5 min. / Half Load: 12 min.
  • 1 x NEMA 5-20P Input / 4 x NEMA 5-15R / 4 x NEMA 5-15/20R
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

Technical Information

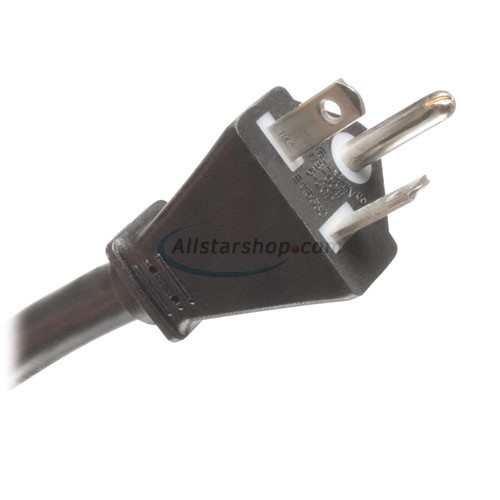

Plug/Connector Type
NEMA 5-20P
Receptacles
4 x NEMA 5-15R
Emergency Power OFF
Yes
Power Description
Load Capacity (VA)
2.20 kVA
Load Capacity (Watt)
1.92 kW
Input Voltage
110 V AC
Output Voltage
120 V AC
Management
Network Management
SNMP Manageable
Interfaces/Ports
Serial Port
Yes
USB
Yes
Battery Information
Backup/Run Time (Full Load)
4.50 Minute
Backup/Run Time (Half Load)
12 Minute
Maximum Battery Recharge Time
4.50 Hour
Hot Swappable
Yes
Physical Characteristics
Height
3.5"
Depth
19.5"
Rack Height
2U
Form Factor
Rack-mountable
Weight (Approximate)
57.60 lb
Miscellaneous
Certifications & Standards
  • UL1778
  • CSA
  • NOM
  • FCC Part 15 Category A (EMI)
Software Included
PowerAlert Software
Warranty
Limited Warranty
2 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Tripp Lite
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
  • Technical Support: Tripp Lite (773) 869-1234

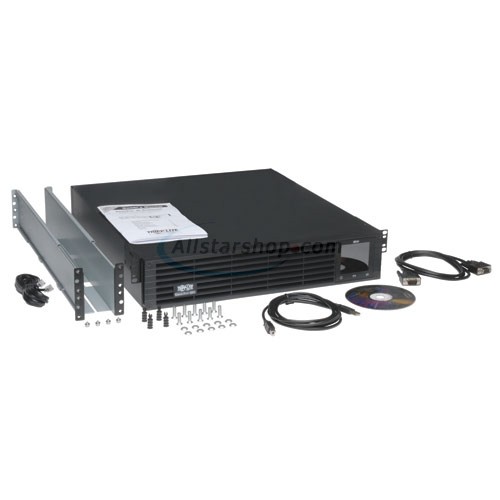

Package Contents


  • SmartPro SMART2200RM2UN 2.2kVA Rack-mountable UPS

  • PowerAlert Software CD

  • USB Cable

  • Serial Cable

  • EPO Cable

  • 4 Post Rackmount Installation kit

  • Instruction Manual

  • Network Interface Card
