SKU: 995-12516Q
  • 1350 W / 1500 VA
  • Full Load: 4.9 min. / Half Load: 14 min.
  • 8 x NEMA 5-15R
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Battery Enclosure Type
Internal
Height (Rack Units)
2U
Rack Size
19"
Depth
13.5 in
Height
3.5 in
Weight
43.4 lbs
Power Device
Input Voltage
AC 120 V
Frequency Required
60 Hz
Input Connector(s)
Power NEMA 5-15
Output Voltage
120 V + 8% / - 18% ( 60 Hz )
Output connector(s)
8 x power NEMA 5-15
Max Electric Current
15 A
Power Provided
1000 Watt / 1500 VA
Output Waveform
Sinewave
Circuit Protection
Circuit breaker
Battery
Voltage Provided
36 V
Run Time (Up To)
7.5 min at full load
Recharge Time
4.5 hour(s)
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x USB
Miscellaneous
Cables Included
1 x power cable - 10 ft
1 x serial cable
1 x USB cable
Rack Mounting Kit
Included
Equipment Protection Value
250000 US Dollars
Features
Audible alarm, LED display, Automatic Voltage Regulation (AVR), overvoltage protection, undervoltage protection, disconnect switch
Compliant Standards
CSA, NOM, UL 1778, FCC Part 15 B, RoHS
Pricing Type
Trade Agreements Act (TAA) Compliance
Software / System Requirements
Software Included
TrippLite PowerAlert
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95%
Dimensions & Weight (Shipping)
Shipping Width
24 in
Shipping Depth
20.2 in
Shipping Height
9 in

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 2 years
  • Warranty Provider: Tripp Lite
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
  • Technical Support: Tripp Lite (773) 869-1234

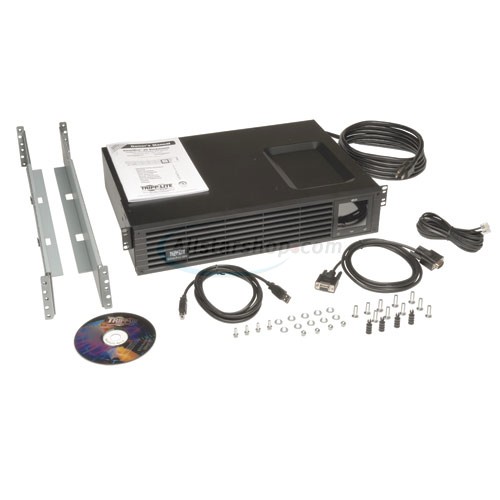

Package Contents

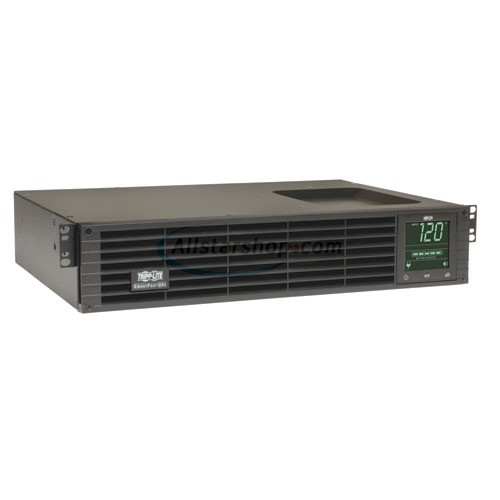

  • SmartPro SM1500RMXL2UTAA 1500VA Rack-mountable UPS
  • PowerAlert Software with USB
  • DB9 and EPO cabling
  • 4 x post rackmount installation accessories
  • Owner's manual with warranty information
