SKU: 992-63136C
  • SFX 12V 4.1 / ATX 12V 3.1
  • Designed with a native 12V-2x6 connector
  • 4x 6+2 and 1x 12V-2x6 (up to 600W) GPU connector
  • PCIe Gen 5.1 Ready / 12+4pin cable included
  • 7-year Warranty / MTBF: 100,000 hours
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Efficiency
80 PLUS Premium
Fans
9cm fluid bearing fan
MTBF
100,000 hours
Protection
OCP, OVP, UVP, OPP, SCP, OTP
Version Support
  • SFX 12V 4.1
  • ATX 12V 3.1
  • Current
    input current: 15A - 8A
    Frequency
    50Hz - 60Hz
    Output Voltage
    Output VoltageOutput Current
    +3.3V18A
    +5V18A
    +12V183.3A
    -12V0.3A
    +5Vsb2.5A
    +12V Combined83.3A
    Input Voltage
    100 Vac - 240 Vac

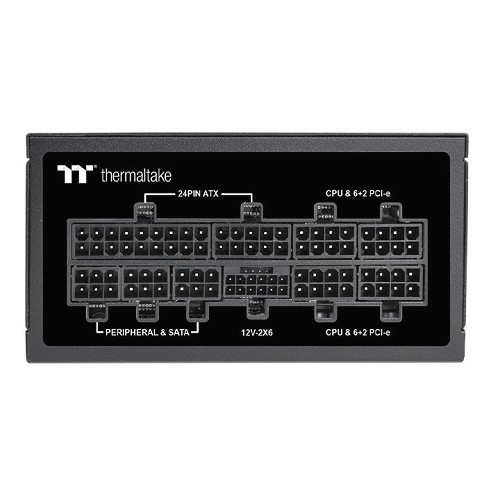

    Connectors
    • 1 x Main Power Connector 24 pin
    • 2 x ATX 12V (4+4 Pin)
    • 8 x SATA
    • 4 x PCI-E (6+2 Pin)
    • 1 x 12VHPWR PCI-E (12+4 Pin)
    • 4 x Peripheral
    • 1 x FDD
    Dimensions
    125mm(W)x63.5mm(H)x103.8mm(D)
    Certifications & Standards
  • 80 PLUS Premium
  • CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • Power Supply Unit
    • AC Power cord
    • 4x Cable straps
    • 1x 24-pin Main power cable
    • 1x ATX 12V 8-pin cable
    • 1x ATX 12V 4+4 pin cable
    • 4x PCIe 6+2 pin cables
    • 1x PCIe 12+4 pin cable
    • 2x SATA cables
    • 1x Peripheral cables
    • 1x floppy adapter cable
    • Mounting screws
    • 1x SFX to ATX adapter
    • User's manual
