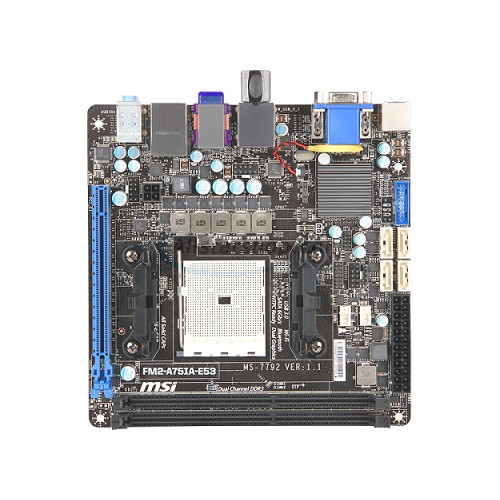

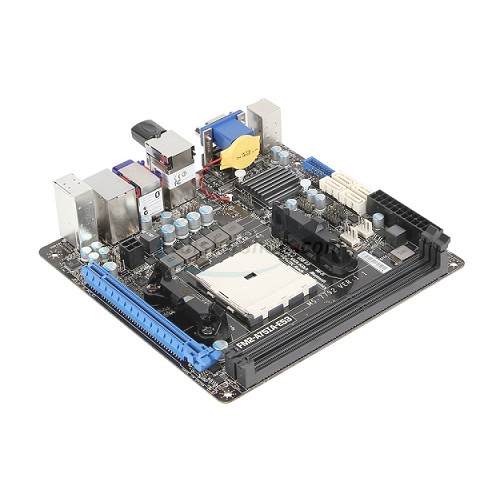

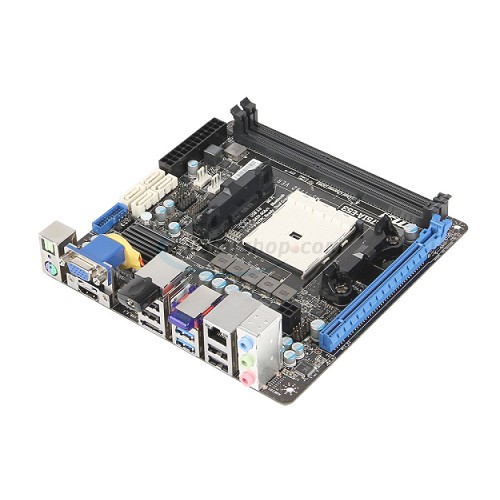

SKU: 800-14015C
  • Integrated AMD Radeon HD 7000 - HDMI / VGA
  • Max 16GB / 2 Dimm DDR3 1866/1600/1333/1066
  • 4 x SATA 6Gb/s, 1 x eSATA 6Gb/s / RAID 0, 1, 10, JBOD
  • Up to 4 x USB 3.0, 8 x USB 2.0
  • 1 x PCIe 2.0 X16
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
AMD Socket FM2 A-Series Processor
Number of Processor (s)
Single (Not Included)
Chipset
AMD A75 FCH
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
2
Type of Memory Supported
240-pin DDR3 1866/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Maximum RAM
16GB

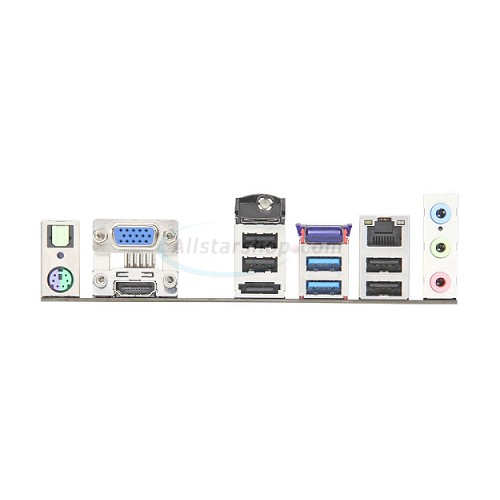

Back Panel I/O
  • 1 x PS/2 keyboard/mouse combo
  • 2 x USB 3.0
  • 4 x USB 2.0
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x eSATA
  • 1 x RJ45 LAN port
  • 1 x Wi-Fi module with an antenna connector
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 2.0 X16
On-Board EIDE/Floppy
No
Integrated SATA/SAS
  • 4 x SATA 6Gb/s
  • 1 x eSATA 3Gb/s
Integrated SATA/SAS RAID
Supports RAID 0, 1, 10 and JBOD
Integrated Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
Integrated Video
Integrated AMD Radeon HD 7000 Series Graphics in A-series APU
Integrated LAN
Realtek 8111E Gigabit LAN controller
Integrated SCSI
No
USB
    Up to 12 x USB ports:
    • 2 x USB 3.0 ports on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 4 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
eSATA
1 x eSATA 3Gb/s
IEEE 1394
No
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
