SKU: 800-14141
  • Max 256GB / 8x DDR4 DIMM / Up to 4266+(O.C.)
  • 8x SATA 6Gb/s, 3x M.2, 1x U.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.2 (3x USB-C), 6x USB 2.0
  • 4x PCIe X16
Our Price: $543.95
List Price: $639.99 You save: $96.04
Discontinued - Not orderable


Specifications

CPU Support
LGA2066 socket for Intel Core X-series processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel X299 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
  • Intel Core X-series Processors (6-core above): 8 DIMM
  • Intel Core X-series Processors (4-core): 4 DIMM
Type of Memory Supported
288-pin DDR4 4266+(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum RAM
256GB
Back Panel I/O
  • Clear CMOS Button
  • Keyboard/Mouse
  • Gigabit LAN
  • 10G LAN
  • Audio Connectors
  • Flash BIOS Button
  • Wireless/Bluetooth
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen2x2 20G Type-C
  • 3 x USB 3.2 Gen1 Type-A
  • Optical S/PDIF Out
Number of PCI/PCI-Express Slots
  • 4 x PCI-E 3.0 x16
Integrated SATA/SAS
8 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)
  • 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)
# of U.2 Ports
1 x U.2
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
8-Channel (7.1) HD Audio w/ Audio Boost 4
Integrated LAN
  • Aquantia AQC107 10G LAN
  • Intel I219v Gigabit LAN
USB
    Up to 18 x USB ports:
    • 1 x USB 3.1 Gen2 Type-A port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port on Back Panel I/O
    • 1 x USB 3.1 Gen2 Type-C port via headers
    • 4 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 4 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 3 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
PS/2 Ports
1 x PS/2 keyboard/ mouse combo port
Form Factor
E-ATX

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

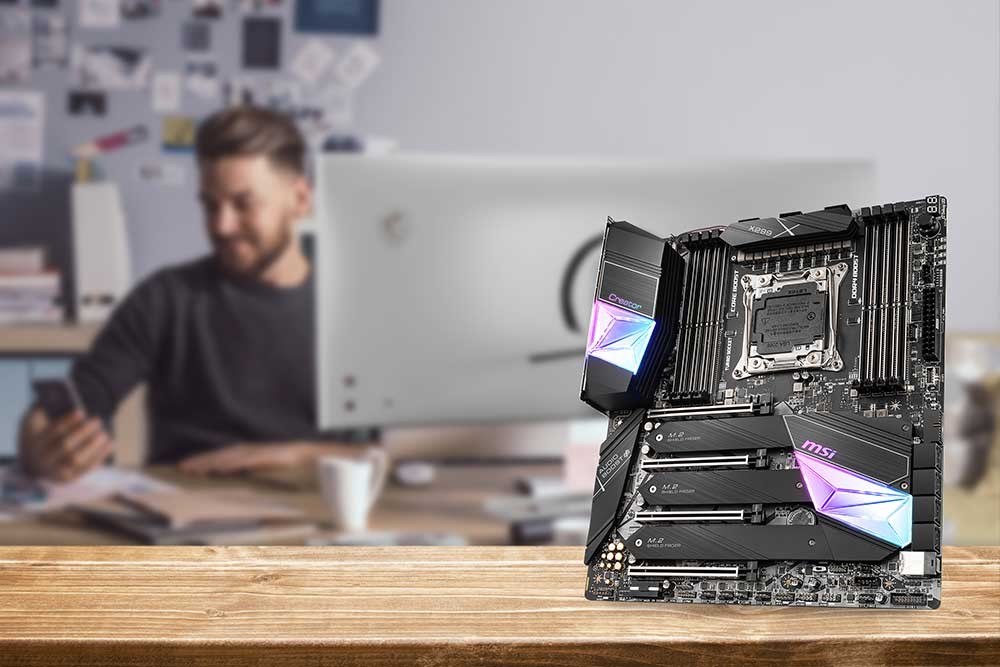

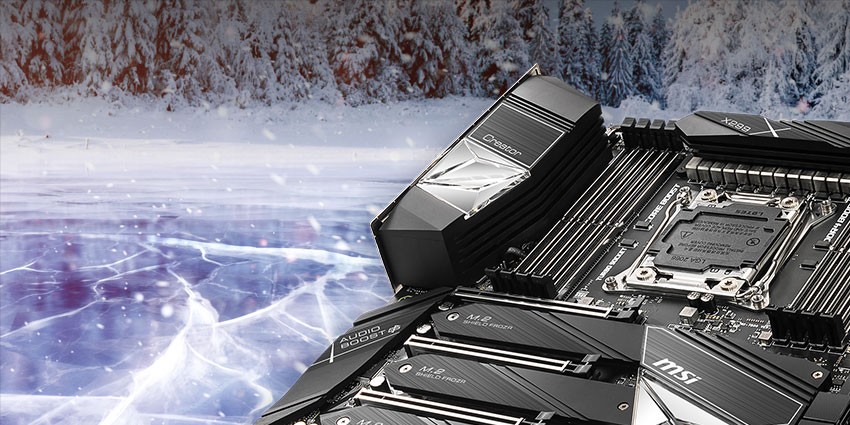

  • MSI X299 CREATOR X299 LGA2066 E-ATX motherboard
